Product Description

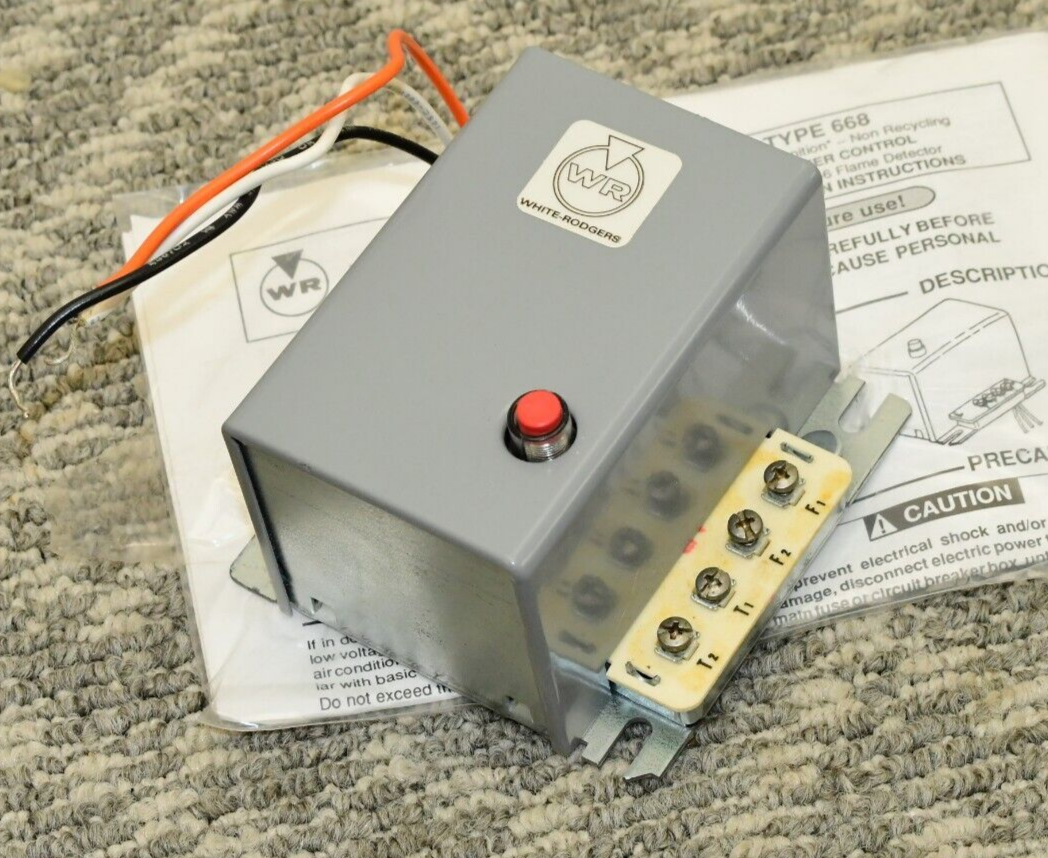

The Copeland Comfort Control 668-401 is an oil burner primary control suitable for oil-fired furnace systems. This model is recognized for its solid-state flame detection that operates efficiently in various conditions without being affected by vibrations or temperature changes. It includes a line voltage safety switch that prevents burner run-on and resumes operation following a momentary flame failure or power cut. Compatible with standard two-wire thermostats, this control is essential for reliable furnace management.
Features 45-second safety switch timing.
Designed for intermittent ignition.
Includes a high ambient motor relay.
Product Highlights
Reliable oil burner control with advanced safety features.
Product Information
Standard Information
Brand: Copeland Comfort Control
MPN: 668-401
Technical Specifications
Input Voltage: 120 VAC, 60 Hz
Control Voltage: 24 VAC
Motor Relay Contacts: 10 FLA, 60 LRA, 120 VAC
Ignition Transformer Rating: 360 VA (3.0 A)
Thermostat Anticipator Setting: 0.4 A
Electrical Connection: 10 Inch Wire Lead
Enclosure Type: Gray Metal
Ignition Type: Intermittent
Mounting Type: Junction Box
Safety Switch Timing: 45 sec
Product Description
The Copeland Comfort Control 668-401 is an oil burner primary control suitable for oil-fired furnace systems. This model is recognized for its solid-state flame detection that operates efficiently in various conditions without being affected by vibrations or temperature changes. It includes a line voltage safety switch that prevents burner run-on and resumes operation following a momentary flame failure or power cut. Compatible with standard two-wire thermostats, this control is essential for reliable furnace management.
Features 45-second safety switch timing.
Designed for intermittent ignition.
Includes a high ambient motor relay.
Product HighlightsReliable oil burner control with advanced safety features.Product InformationStandard Information
Brand: Copeland Comfort Control
MPN: 668-401
Technical Specifications
Input Voltage: 120 VAC, 60 Hz
Control Voltage: 24 VAC
Motor Relay Contacts: 10 FLA, 60 LRA, 120 VAC
Ignition Transformer Rating: 360 VA (3.0 A)
Thermostat Anticipator Setting: 0.4 A
Electrical Connection: 10 Inch Wire Lead
Enclosure Type: Gray Metal
Ignition Type: Intermittent
Mounting Type: Junction Box
Safety Switch Timing: 45 sec
Vendor: COPELAND COMFORT CONTROL
Vendor Raw: COPELAND COMFORT CONTROL
Product Type: FURNACE CONTROL BOARDS
Availability Text: In Stock
Brand: Copeland Comfort Control
MPN: 668-401
Input Voltage: 120 VAC, 60 Hz
Control Voltage: 24 VAC
Motor Relay Contacts: 10 FLA, 60 LRA, 120 VAC
Ignition Transformer Rating: 360 VA (3.0 A)
Thermostat Anticipator Setting: 0.4 A
Electrical Connection: 10 Inch Wire Lead
Enclosure Type: Gray Metal
Ignition Type: Intermittent
Mounting Type: Junction Box
Safety Switch Timing: 45 sec
