Product Description

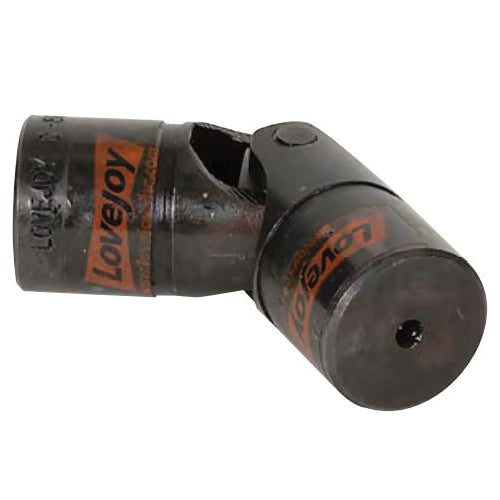

LOVEJOY INC provides the 68514416595 Universal Joint, known as the D10B-UJ-3/4X3/4-NKW NSS BE. This product features a D type pin and block design. It has a bore size of 0.75 inches diameter by 1.08 inches deep. The joint diameter is 1.5 inches. This joint can withstand a static torque of 7920 inch-pounds and operates at a maximum speed of 1750 revolutions per minute. It measures 4.25 inches in overall length and has a pin height of 2.12 inches. The maximum misalignment angle supported is 25 degrees.
Industry standard design
Does not include keyway and setscrew
Durable steel construction
Product Highlights
This universal joint is suitable for various applications in power transmission where flexibility and strength are required.
Product Information
Standard Information
Manufacturer: LOVEJOY INC
UPC: 685144165954
Technical Specifications
Bore Size: 0.75 inches diameter x 1.08 inches depth
Joint Diameter: 1.5 inches
Overall Length: 4.25 inches
Pin Height: 2.12 inches
Maximum Misalignment Angle: 25 degrees
Maximum Speed: 1750 rpm
Torque Rating: 7920 inch-pounds static
Material: Steel
Product DescriptionLOVEJOY INC provides the 68514416595 Universal Joint, known as the D10B-UJ-3/4X3/4-NKW NSS BE. This product features a D type pin and block design. It has a bore size of 0.75 inches diameter by 1.08 inches deep. The joint diameter is 1.5 inches. This joint can withstand a static torque of 7920 inch-pounds and operates at a maximum speed of 1750 revolutions per minute. It measures 4.25 inches in overall length and has a pin height of 2.12 inches. The maximum misalignment angle supported is 25 degrees.
Industry standard design
Does not include keyway and setscrew
Durable steel construction
Product HighlightsThis universal joint is suitable for various applications in power transmission where flexibility and strength are required.Product InformationStandard Information
Manufacturer: LOVEJOY INC
UPC: 685144165954
Technical Specifications
Bore Size: 0.75 inches diameter x 1.08 inches depth
Joint Diameter: 1.5 inches
Overall Length: 4.25 inches
Pin Height: 2.12 inches
Maximum Misalignment Angle: 25 degrees
Maximum Speed: 1750 rpm
Torque Rating: 7920 inch-pounds static
Material: Steel
Vendor: LOVEJOY
Vendor Raw: LOVEJOY
Product Type: CONTROL BOARDS
Category: Electrical Supplies
Subcategory: Control & Circuit Boards
Subchildcategory: Control Boards
Availability Text: In Stock
Manufacturer: LOVEJOY INC
UPC: 685144165954
Bore Size: 0.75 inches diameter x 1.08 inches depth
Joint Diameter: 1.5 inches
Overall Length: 4.25 inches
Pin Height: 2.12 inches
Maximum Misalignment Angle: 25 degrees
Maximum Speed: 1750 rpm
Torque Rating: 7920 inch-pounds static
Material: Steel
