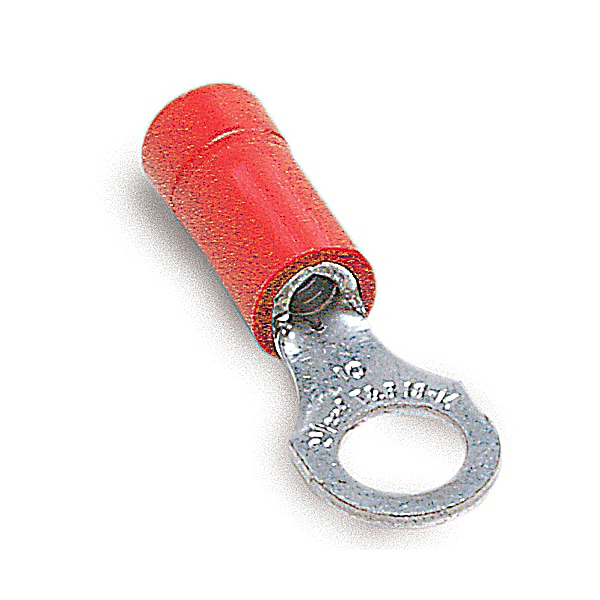

18RA-10, INS VINYL ANILLO TERMINAL 22-16 No10 ROJO, PAQ 100
| Wire Range | 22-16 AWG |
|---|---|
| Insulation Type | Ring Terminal |
| Stud Size | #10 |
| Insulation Color | Red |
| Features | These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point.; Brazed seam barrel is serrated to obtain high pull-out value.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RA877 |
| Connection Material | Copper |
| Tongue Width - Wire Connector | 0.31 in |
| Overall Length | 0.97 in |
| Max. Temp. | 105 deg C |
| Standards | UL E9809 |
| Max. Voltage | 600 V |
| Insulation Dia | 0.15 in |
| Surface protection | Tinned |
| Stud size (imperial) | 10 |
| Insulation | Polyvinyl chloride |
| AWG-range | 22 to 16 |
| Special Features | These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point. Brazed seam barrel is serrated to obtain high pull-out value. |
| Flange shape | Ring shape |
| Package Quantity | 100 |
