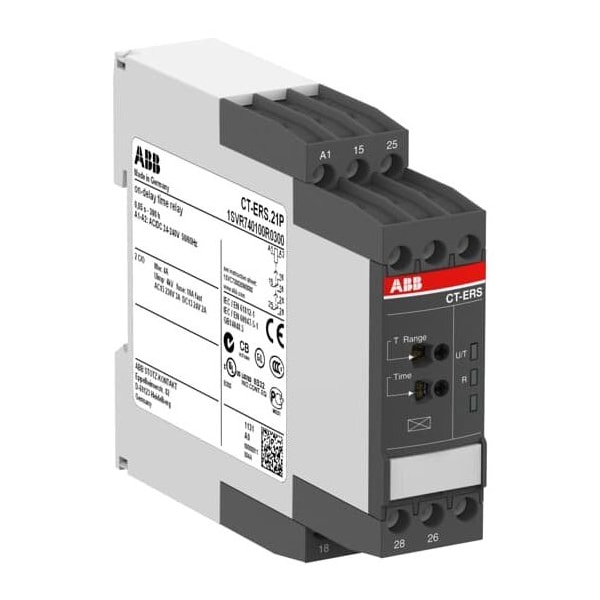

1SVR740100R0300, CT-ERS.21P RELÉ TEMPORIZADOR DE TIEMPO EN RETARDO.
| Input or Control Voltage | 24 to 240 V AC/DC |
|---|---|
| Mounting - Relay | TH35-15, TH35-7.5 |
| Width | 22.5 mm |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61812-1, UL 508 |
| Output | 2 C/O (SPDT) Contacts |
| Hz | 50/60 Hz DC |
| Time Range | 0.05 sec to 300 hr |
| Depth | 103.7 mm |
| Overall Height - Relay | 85.6 mm |
| Operating Voltage | Output Circuit: 300 V AC |
| Package Quantity | 1 |
