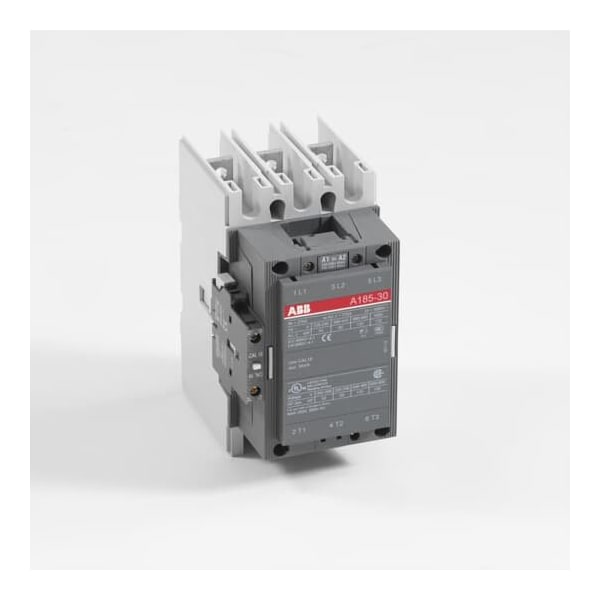

Contactor de 3 polos Normalmente Abierto a 120VAC 156A
| Coil Volts | 110 to 120V |
|---|---|
| HP @ 3 Phase - 208V | 50 hp |
| HP @ 3 Phase - 240V | 60 hp |
| HP @ 3 Phase - 480V | 125 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 Hz |
| Width | 111.5 mm |
| Depth | 160 mm |
| Height | 196 mm |
| Control Circuit Voltage Limits | 0.85 to 1.1 Uc |
| Mechanical Durability | 5 Mcycles |
| Thermal Amperage | 275 A (at 40°C) |
| Hold VA | 35 VA (at 50 Hz), 40 VA (at 60 Hz) |
| Rated Short-Time Withstand Current | 1500 A (at 40°C for 10 s), 320 A (at 40°C for 15 min), 800 A (at 40°C for 1 min), 2000 A (at 40°C for 1 s), 1000 A (at 40°C for 30 s) |
| Net Weight | 2.9 kg |
| IP Rating | IP20, IP00 |
| Impulse Withstand Voltage | 8 kV |
| Operating Time | 5 to 10 ms (Coil De-energization and NC Contact Closing), 9 to 13 ms (Coil De-energization and NO Contact Opening), 8 to 22 ms (Coil Energization and NC Contact Opening), 13 to 27 ms (Coil Energization and NO Contact Closing) |
| Rated Voltage | 690V |
| Working Height | 3,000 m |
| Electrical Connection | Bars |
| Rated Insulation Volts | 600/1000V |
| Max. Operating Watts | 55 kW (at 220/230/240V), 90 kW (at 380/400V, 415V, 440V), 110 kW (at 500V), 132 kW(at 690V) |
| Package Quantity | 1 |
