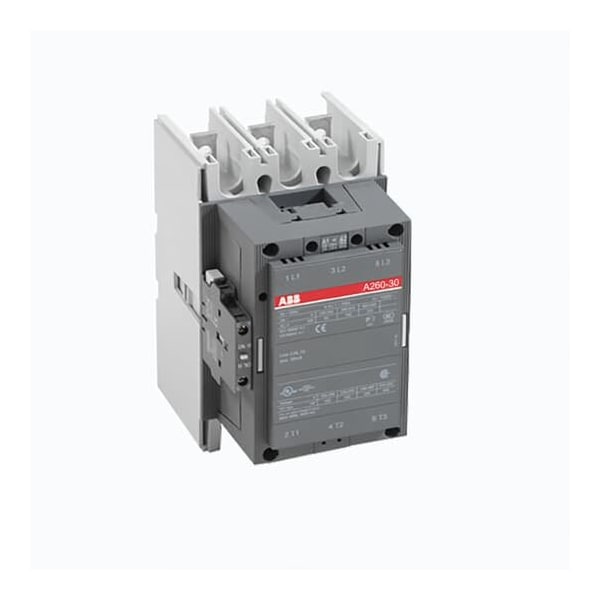

A260-30-11-84, A260, 3 piezas conector, 110/50, 110-120/60
| Coil Volts | 110 to 120V |
|---|---|
| HP @ 3 Phase - 208V | 75 hp |
| HP @ 3 Phase - 240V | 100 hp |
| HP @ 3 Phase - 480V | 200 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 Hz |
| Depth | 180.5 mm |
| Height | 227 mm |
| Width | 140 mm |
| Rated Short-Time Withstand Current | 2400 A (at 40°C 10 s), 500 A (for 40°C 15 min), 1100 A (at 40°C 1 min), 3500 A (at 40°C 1 s), 1500 A (at 40°C 30 s) |
| Operating Time | 7 to 13 ms (Coil De-energization and NC Contact Closing), 10 to 16 ms (Coil De-energization and NO Contact Opening), 12 to 30 ms (Coil Energization and NC Contact Opening), 17 to 35 ms (Coil Energization and NO Contact Closing) |
| Rated Insulation Volts | 600/1000V |
| Net Weight | 5.4 kg |
| Max. Operating Watts | 140 kW (at 380/400V, 415V, 440V), 180 kW (at 500V), 200 kW (at 690V), 80 kW (at 220/230/240V) |
| Impulse Withstand Voltage | 8 kV |
| Working Height | 3,000 m |
| Control Circuit Voltage Limits | 0.85 to 1.1 Uc |
| Hold VA | 60 VA (at 50 Hz), 65 VA (at 60 Hz) |
| Electrical Connection | Bars |
| Thermal Amperage | 400 A (at 40°C) |
| Rated Voltage | 690V |
| IP Rating | IP20, IP00 |
| Mechanical Durability | 5 Mcycles |
| Package Quantity | 1 |
