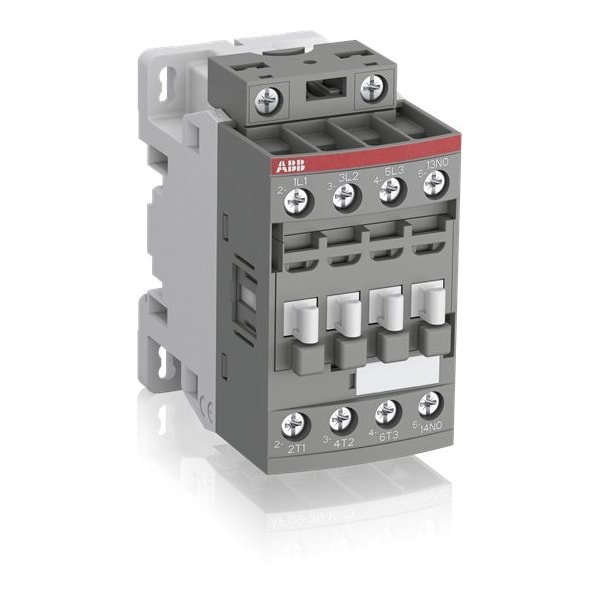

AF09-30-10-13, AF09 3P CONTR, 1NO, 100-250VAC/D
AF09-30-10-13, AF09 3P CONTR, 1NA, 100-250VCA/D
| Coil Volts | 100 to 250V AC/DC |
|---|---|
| HP @ 1 Phase - 120V | 3/4 hp |
| HP @ 1 Phase - 240V | 1 1/2 hp |
| HP @ 3 Phase - 208V | 2 hp |
| HP @ 3 Phase - 240V | 2 hp |
| HP @ 3 Phase - 480V | 5 hp |
| Aux. Contact Configuration | 1NO |
| Hz | 50/60 Hz |
| Standards | IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2 |
| Height | 86 mm |
| Width | 45 mm |
| Depth | 77 mm |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Net Weight | 0.27 kg |
| Electrical Connection | Screw Terminals |
| Operating Time | 13 to 98 ms (Coil De-energization and NC Contact Closing), 11 to 95 ms (Coil De-energization and NO Contact Opening), 38 to 90 ms (Coil Energization and NC Contact Opening), 40 to 95 ms (Coil Energization and NO Contact Closing) |
| Working Height | 3,000 m |
| Rated Insulation Volts | 600/690V |
| Max. Operating Watts | 2.2 kW (at 220/230/240V), 4 kW (at 380/400V, 415V, 440V), 5.5 kW (at 500V, 690V) |
| IP Rating | IP20 |
| Rated Voltage | 690V |
| Impulse Withstand Voltage | 6 kV |
| Rated Short-Time Withstand Current | 150 A (at 40°C for 10 s), 35 A (at 40°C for 15 min), 60 A (at 40°C for 1 min), 300 A (at 40°C for 1 s), 80 A (at 40°C for 30 s) |
| Thermal Amperage | 16/35 A (at 40°C) |
| Package Quantity | 1 |
