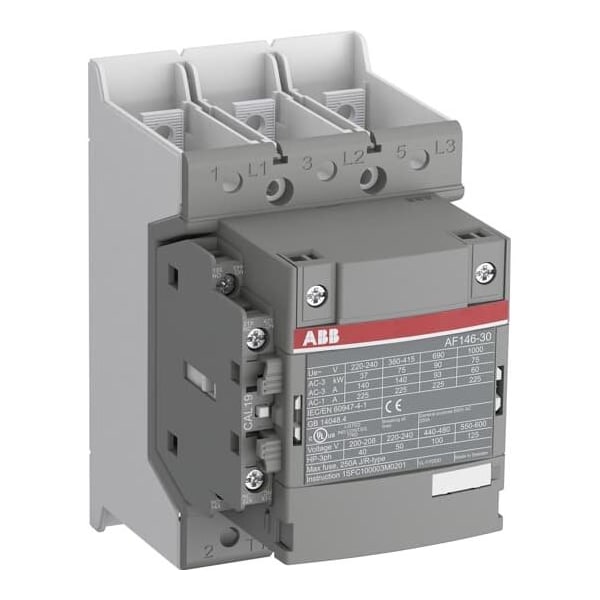

AF146-30-11B-11, CTR, 3P, 130A, 20-60VDC/24-60VAC, 1/1
AF146-30-11B-11, CTR, 3P, 130A, 20-60VDC/24-60VAC, 1/1
| Coil Volts | 20 to 60V DC, 24 to 60 V AC |
|---|---|
| HP @ 3 Phase - 208V | 40 hp |
| HP @ 3 Phase - 240V | 50 hp |
| HP @ 3 Phase - 480V | 100 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 Hz |
| Height | 150 mm |
| Depth | 126 mm |
| Width | 90 mm |
| Max. Operating Watts | 75 kW (at 415V, 1000V, 380/400V), 90 kW (at 440V, 500V, 690V), 45 kW (at 220/230/240V) |
| Net Weight | 1.3 kg |
| Mechanical Durability | 5 Mcycles |
| IP Rating | IP20, IP00 |
| Rated Short-Time Withstand Current | 1168 A (at 40°C for 10 s), 200 A (at 40°C for 15 min), 477 A (at 40°C for 1 min), 1460 A (at 40°C for 1 s), 674 A (at 40°C for 30 s) |
| Rated Voltage | 1000V |
| Control Circuit Voltage Limits | 0.85 to 1.1 Uc |
| Working Height | 3,000 m |
| Hold VA | 5.5 VA |
| Operating Time | 37 to 47 ms (Coil De-energization and NO Contact Opening), 25 to 55 ms (Coil Energization and NO Contact Closing) |
| Thermal Amperage | 225 A (at 40°C) |
| Impulse Withstand Voltage | 8 kV |
| Rated Insulation Volts | 600/1000V |
| Electrical Connection | Bars |
| Package Quantity | 1 |
