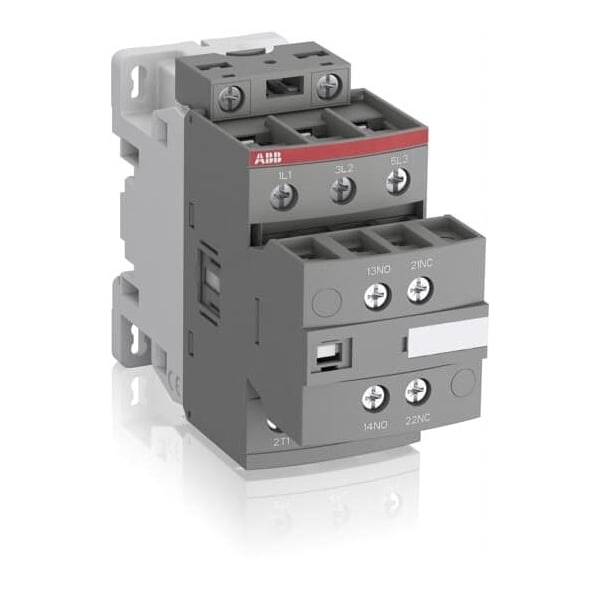

AF26-30-11-11, AF26 CONT 3P 1NO1NC 24-60VAC50/60HZ
AF26-30-11-11, AF26 CONT 3P 1NA1NC 24-60VAC50/60HZ
| Coil Volts | 20 to 60V DC, 24 to 60 V AC |
|---|---|
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 240V | 3 hp |
| HP @ 3 Phase - 208V | 7 1/2 hp |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 480V | 15 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 Hz |
| Height | 86 mm |
| Depth | 111.5 mm |
| Standards | IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2 |
| Width | 45 mm |
| IP Rating | IP20, IP40 |
| Thermal Amperage | 16/50 A (at 40°C) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Rated Short-Time Withstand Current | 350 A (at 40°C for 10 s), 50 A (at 40°C for 15 min), 150 A (at 40°C for 1 min), 700 A (at 40°C for 1 s), 225 A (at 40°C for 30 s) |
| Net Weight | 0.35 kg |
| Rated Insulation Volts | 600/690V |
| Rated Voltage | 690V |
| Electrical Connection | Screw Terminals |
| Max. Operating Watts | 11 kW (at 380/400V, 415V), 15 kW (at 440V, 500V, 690V), 6.5 kW (at 220/230/240V) |
| Operating Time | 13 to 98 ms (Coil De-energization and NC Contact Closing), 11 to 95 ms (Coil De-energization and NO Contact Opening), 38 to 90 ms (Coil Energization and NC Contact Opening), 40 to 95 ms (Coil Energization and NO Contact Closing) |
| Working Height | 3,000 m |
| Impulse Withstand Voltage | 6 kV |
| Package Quantity | 1 |
