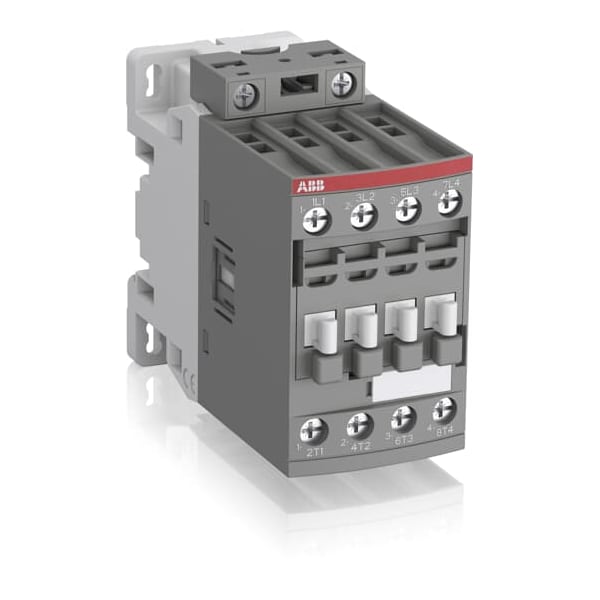

AF26-40-00-11, AF26 4P CONTR, 24-60VCA, 20-60VCC
| Coil Volts | 20 to 60V DC, 24 to 60 V AC |
|---|---|
| Aux. Contact Configuration | No Auxiliary Contacts |
| Hz | 50/60 Hz |
| Standards | IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2 |
| Height | 86 mm |
| Depth | 101 mm |
| Width | 45 mm |
| Operating Time | 13 to 98 ms (Coil De-energization and NC Contact Closing), 11 to 95 ms (Coil De-energization and NO Contact Opening), 38 to 90 ms (Coil Energization and NC Contact Opening), 40 to 95 ms (Coil Energization and NO Contact Closing) |
| Thermal Amperage | 55 A (at 40°C) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Impulse Withstand Voltage | 6 kV |
| Electrical Connection | Screw Terminals |
| IP Rating | IP20 |
| Rated Insulation Volts | 600/690V |
| Rated Short-Time Withstand Current | 300 A (at 40°C for 10 s), 55 A (at 40°C for 15 min), 150 A (at 40°C for 1 min), 450 A (at 40°C for 1 s), 225 A (at 40°C for 30 s) |
| Working Height | 3,000 m |
| Net Weight | 0.36 kg |
| Rated Voltage | 690V |
| Max. Operating Watts | 11 kW (at 400V, 415V, 440V, 500V), 9 kW (at 690V), 5.5 kW (at 220/230/240V) |
| Package Quantity | 1 |
