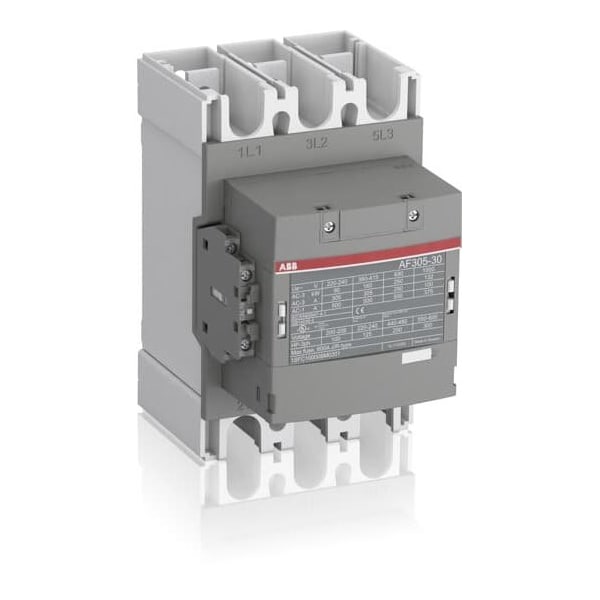

AF305-30-11-11, CTR, 3P, 312A, 20-60VDC/24-60VAC, 1/1
Traducción: AF305-30-11-11, CTR, 3 polos, 312 amperios, 20-60VDC/24-60VAC, 1 fase/1 fase
| Coil Volts | 20 to 60V DC, 24 to 60 V AC |
|---|---|
| HP @ 3 Phase - 208V | 100 hp |
| HP @ 3 Phase - 240V | 125 hp |
| HP @ 3 Phase - 480V | 250 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 Hz |
| Height | 225 mm |
| Depth | 180 mm |
| Width | 140 mm |
| IP Rating | IP20, IP00 |
| Max. Operating Watts | 185 kW (at 1000V), 90 kW (at 220/230/240V), 160 kW (at 380/400V, 415V, 440V), 200 kW (at 500V), 250 kW (at 690V) |
| Hold VA | 8.5 VA |
| Impulse Withstand Voltage | 8 kV |
| Operating Time | 37 to 47 ms (Coil De-energization and NO Contact Opening), 25 to 55 ms (Coil Energization and NO Contact Closing) |
| Net Weight | 3.9 kg |
| Control Circuit Voltage Limits | 0.85 to 1.1 Uc |
| Mechanical Durability | 5 Mcycles |
| Rated Short-Time Withstand Current | 2440 A (at 40°C for 10 s), 500 A (at 40°C for 15 min), 996 A (at 40°C for 1 min), 3050 A (at 40°C for 1 s), 1409 A (at 40°C for 30 s) |
| Thermal Amperage | 500 A (at 40°C) |
| Rated Voltage | 1000V |
| Rated Insulation Volts | 600/1000V |
| Working Height | 3,000 m |
| Electrical Connection | Bars |
| Package Quantity | 1 |
