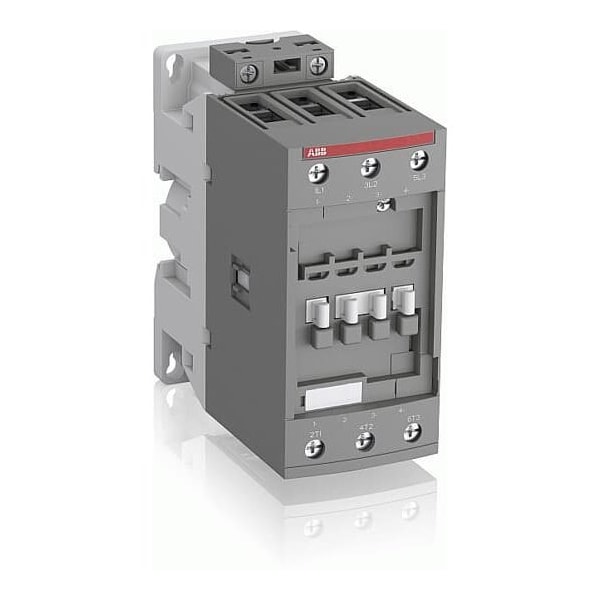

AF40-30-00-13, CTR, 3P, 42A, 100-250VCA/CD
| Coil Volts | 100 to 250V AC/DC |
|---|---|
| HP @ 1 Phase - 120V | 3 hp |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 208V | 10 hp |
| HP @ 3 Phase - 240V | 15 hp |
| HP @ 3 Phase - 480V | 30 hp |
| Aux. Contact Configuration | No Auxiliary Contacts |
| Hz | 50/60 Hz |
| Depth | 111 mm |
| Width | 55 mm |
| Height | 125.5 mm |
| Rated Short-Time Withstand Current | 600 A (at 40°C for 10 s), 110 A (at 40°C for 15 min), 250 A (at 40°C for 1 min), 1000 A (at 40°C for 1 s), 350 A (at 40°C for 30 s) |
| Max. Operating Watts | 11 kW (at 220/230/240V), 18.5 kW (at 380/400V), 22 kW (at 415V, 440V, 500V, 690V) |
| Thermal Amperage | 105 A (40°C) |
| Net Weight | 0.95 kg |
| Impulse Withstand Voltage | 6 kV |
| IP Rating | IP10 |
| Rated Insulation Volts | 600/690V |
| Electrical Connection | Screw Terminals |
| Working Height | 3,000 m |
| Rated Voltage | 690V |
| Vibration Resistance | 3 G (Contactor Closed), 3 G (Contactor Open) |
| Operating Time | 19 to 105 ms (Coil De-energization and NC Contact Closing), 17 to 100 ms (Coil De-energization and NO Contact Opening ), 38 to 95 ms (Coil Energization and NC Contact Opening), 42 to 100 ms (Coil Energization and NO Contact Closing) |
| Package Quantity | 1 |
