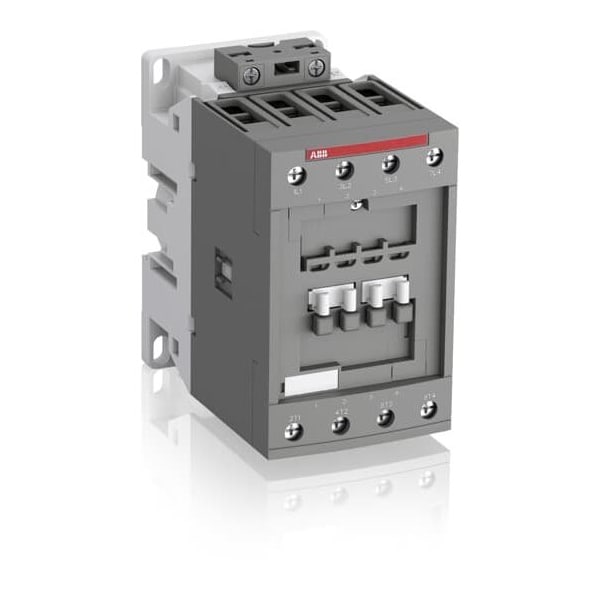

AF52-40-00-13, CONTACTOR DE 4 POLOS 80A 600VCA
| Coil Volts | 100 to 250V AC/DC |
|---|---|
| HP @ 1 Phase - 120V | 3 hp |
| HP @ 1 Phase - 240V | 10 hp |
| HP @ 3 Phase - 208V | 15 hp |
| HP @ 3 Phase - 240V | 20 hp |
| HP @ 3 Phase - 480V | 40 hp |
| Aux. Contact Configuration | No Auxiliary Contacts |
| Hz | 50/60 Hz |
| Width | 70 mm |
| Height | 125.5 mm |
| Depth | 113.5 mm |
| Thermal Amperage | 105 A (40°C) |
| IP Rating | IP20, IP10 |
| Rated Short-Time Withstand Current | 600 A (at 40°C for 10 s), 110 A (at 40°C for 15 min), 250 A (at 40°C for 1 min), 1000 A (at 40°C for 1 s), 350 A (at 40°C for 30 s) |
| Max. Operating Watts | 15 kW (at 220/230/240V), 22 kW (at 380/400V), 30 kW (at 415V, 440V, 500V), 30 kW (at 690V) |
| Working Height | 3,000 m |
| Net Weight | 1.16 kg |
| Impulse Withstand Voltage | 6 kV |
| Vibration Resistance | 3 G (Contactor Closed), 2 G (Contactor Open) |
| Rated Voltage | 690V |
| Electrical Connection | Screw Terminals |
| Rated Insulation Volts | 600/690V |
| Package Quantity | 1 |
