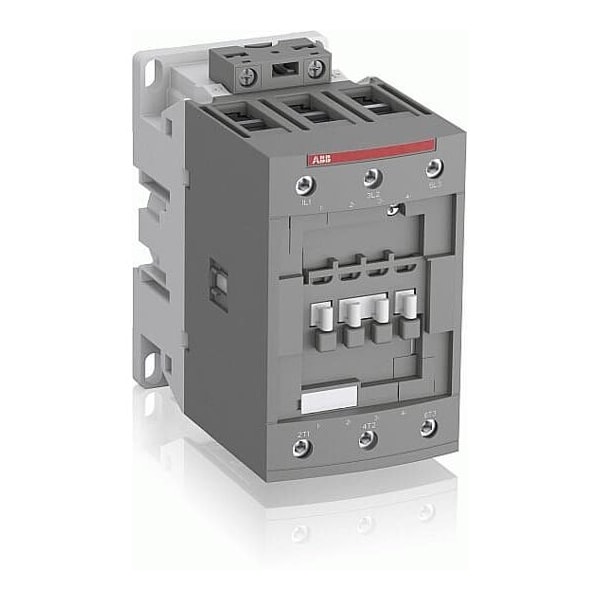

AF80-30-00-13, CTR, 3P, 80A, 100-250VAC/DC, 1/1
Traducción: AF80-30-00-13, CTR, 3 Polos, 80 Amperes, 100-250VAC/DC, 1/1
| Coil Volts | 100 to 250V AC/DC |
|---|---|
| HP @ 1 Phase - 120V | 7 1/2 hp |
| HP @ 1 Phase - 240V | 15 hp |
| HP @ 3 Phase - 208V | 25 hp |
| HP @ 3 Phase - 240V | 30 hp |
| HP @ 3 Phase - 480V | 60 hp |
| Aux. Contact Configuration | No Auxiliary Contacts |
| Hz | 50/60 Hz |
| Depth | 116 mm |
| Width | 70 mm |
| Height | 125.5 mm |
| Net Weight | 1.17 kg |
| Electrical Connection | Screw Terminals |
| IP Rating | IP10 |
| Thermal Amperage | 130 A (at 40°C) |
| Impulse Withstand Voltage | 8 kV |
| Rated Voltage | 1000V |
| Working Height | 3,000 m |
| Rated Short-Time Withstand Current | 780 A (at 40°C for 10 s), 140 A (at 40°C for 15 min), 300 A (at 40°C for 1 min), 1200 A (at 40°C for 1 s), 450 A (at 40°C for 30 s) |
| Rated Insulation Volts | 600/1000V |
| Operating Time | 19 to 105 ms (Coil De-energization and NC Contact Closing), 17 to 100 ms (Coil De-energization and NO Contact Opening ), 38 to 95 ms (Coil Energization and NC Contact Opening), 42 to 100 ms (Coil Energization and NO Contact Closing) |
| Vibration Resistance | 3 G (Contactor Closed), 3 G (Contactor Open) |
| Max. Operating Watts | 250 kW (at 1000V), 22 kW (at 220/230/240V), 37 kW (at 380/400V), 45 kW (at 415V, 440V, 500V, 690V), 37 kW (at 400V) |
| Package Quantity | 1 |
