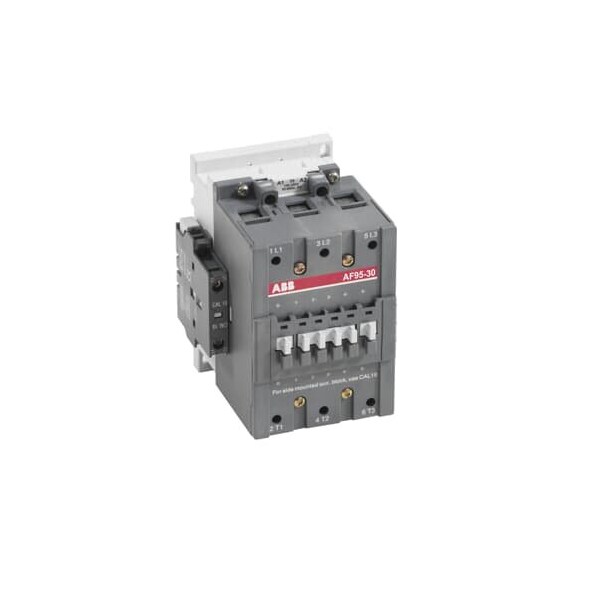

AF95-30-11-69, AF95, 3P CONTR, 48-130V AC/DC
Esto podría traducirse como: AF95-30-11-69, AF95, 3P CONTR, 48-130V AC/DC
| Coil Volts | 48 to 130V AC/DC |
|---|---|
| HP @ 3 Phase - 208V | 30 hp |
| HP @ 3 Phase - 240V | 30 hp |
| HP @ 3 Phase - 480V | 60 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 Hz |
| Depth | 123.5 mm |
| Height | 148 mm |
| Width | 102 mm |
| Net Weight | 1.9 kg |
| Rated Voltage | 1000V |
| Hold VA | 7 VA |
| Electrical Connection | Cable Clamp |
| Mechanical Durability | 10 Mcycles |
| Working Height | 3,000 m |
| Max. Operating Watts | 45 kW (at 380/400V), 55 kW (at 415V, 440V, 500V, 690V), 40 kW (at 1000V), 25 kW (at 220/230/240V) |
| Rated Insulation Volts | 600/1000V |
| Thermal Amperage | 145 A (at 40°C) |
| Impulse Withstand Voltage | 8 kV |
| IP Rating | IP20, IP10 |
| Operating Time | 60 to 130 ms (Coil De-energization and NC Contact Closing), 55 to 125 ms (Coil De-energization and NO Contact Opening), 27 to 77 ms (Coil Energization and NC Contact Opening), 30 to 80 ms (Coil Energization and NO Contact Closing) |
| Control Circuit Voltage Limits | 0.85 to 1.1 Uc |
| Package Quantity | 1 |
