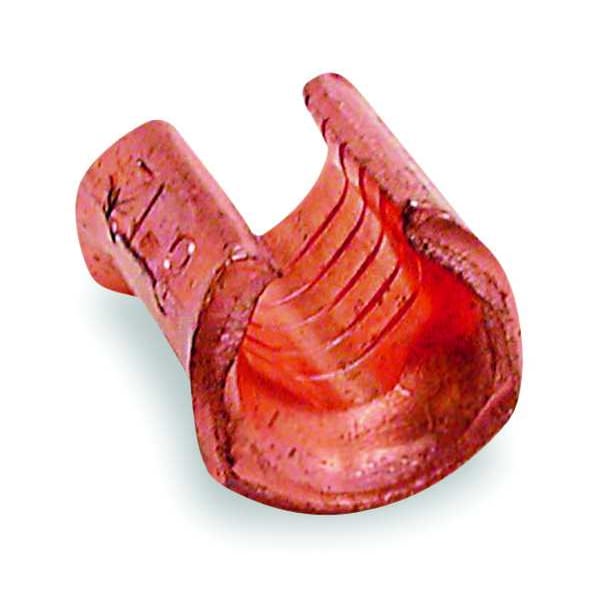

C Tap, Blue, 24, Main 10-8, Branch 10-12
| Material | Copper |
|---|---|
| Length | 9/16 in |
| Color Code | Blue |
| Height | 7/16 in |
| Die Code | 24 |
| Description/Special Features | Ideal for Pigtailing, 2-way Splicing or Tapping to an Unbroken Continuous Main, 600V Applications |
| Standards | UL E9809 |
| Item | C Tap |
| Material of Construction | Wrought Copper |
| Wire Range | Branch 10 to 12 AWG, Main 10 to 8 AWG |
| Length (Straight Wireway) | 9/16 in |
| Overall Length | 9/16 in |
| For Minimum Tap Wire Size | 12 AWG |
| Special Features | Positive, All-Around Compression With Low Resistance and High Pull-Out Values |
| Finish | Plain |
| Termination Style | Crimp |
| For Minimum Run Wire Size | 10 AWG |
| Maximum Voltage | 600 V |
| For Maximum Tap Wire Size | 10 AWG |
| For Maximum Run Wire Size | 8 AWG |
| For Conductor Material | Copper |
| Overall Height | 7/16 in |
| For Minimum Equal Wire Size | 10 AWG (Main), 12 AWG (Branch) |
| Compatible with Product Type | Crimping Die |
| For Maximum Equal Wire Size | 10 AWG (Branch), 8 AWG (Main) |
| Compatible Installation Tool Model Number | 13454, 13461, 13475, 13477, 6TON24, TBM6224 |
| Voltage Rating | 600 V |
| Type | C Taps |
| Tap Size | 10 to 12 AWG |
| Conductor Size | 10-8 AWG |
| Standard | UL E9809 |
| Features | Positive, all-around compression with low resistance and high pull-out values.; Ideal for pigtailing, 2-way splicing or tapping to an unbroken continuous main.; Heavy reinforcing ribs help locate compression dies and strengthen compressed joint. |
| Package Quantity | 1 |
