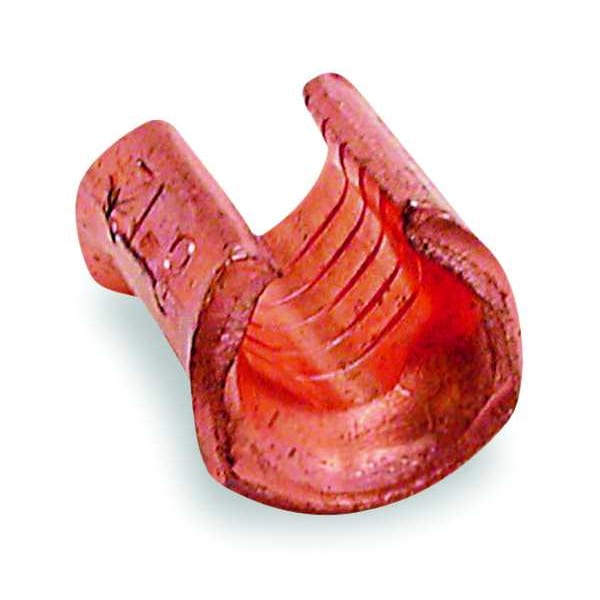

Tapa C, morada, 54, Principal 2/0-1, Rama 1-12.
| Material | Copper |
|---|---|
| Length | 1-11/16 in |
| Color Code | Purple |
| Wire Range | Branch 1 to 12 AWG, Main 2/0 to 1 AWG |
| Die Code | 54 |
| Material of Construction | Wrought Copper |
| Description/Special Features | Ideal for Pigtailing, 2-way Splicing or Tapping to an Unbroken Continuous Main, 600V Applications |
| Height | 1-1/16 in |
| Item | C Tap |
| Standards | UL E9809 |
| Length (Straight Wireway) | 1-11/16 in |
| Special Features | Positive, All-Around Compression With Low Resistance and High Pull-Out Values |
| For Minimum Run Wire Size | 1 AWG |
| Finish | Plain |
| For Maximum Equal Wire Size | 1 AWG (Branch), 2/0 AWG (Main) |
| For Minimum Equal Wire Size | 1 AWG (Main), 12 AWG (Branch) |
| Maximum Voltage | 600 V |
| Overall Length | 1-11/16 in |
| For Maximum Tap Wire Size | 1 AWG |
| For Conductor Material | Copper |
| For Maximum Run Wire Size | 2/0 AWG |
| Compatible with Product Type | Crimping Die |
| For Minimum Tap Wire Size | 12 AWG |
| Overall Height | 1 1/16 in |
| Termination Style | Crimp |
| Compatible Installation Tool Model Number | 13456, 13463, 13475, 13477, 6TON54, TBM6254 |
| Product Type | C-Tap |
| Surface Finishing | Plain |
| Special Functions | Positive, all-around compression with low resistance and high pull-out values. |
| Product Name | ELECTRICAL TERMINAL |
| Voltage Rating | 600 V |
| Tap Size | 1 to 12 AWG |
| Features | Positive, all-around compression with low resistance and high pull-out values.; Ideal for pigtailing, 2-way splicing or tapping to an unbroken continuous main.; Heavy reinforcing ribs help locate compression dies and strengthen compressed joint. |
| Conductor Size | 1 - 2/0 awg |
| Package Quantity | 1 |
