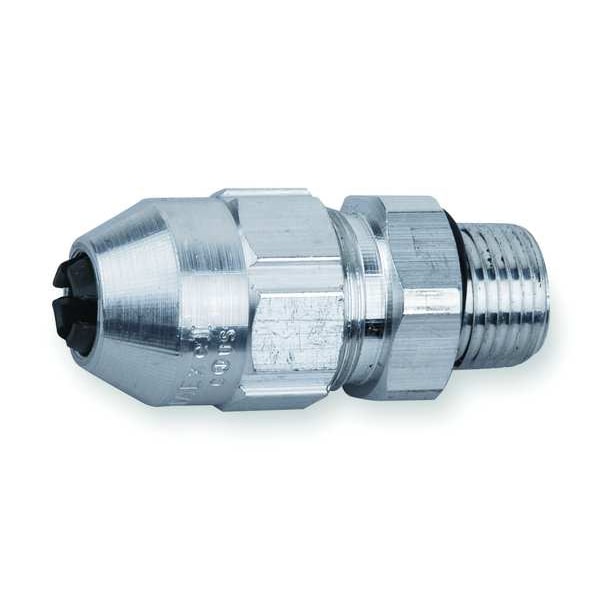

Cable Connector, 1-1/4 In, Straight
| Item | Enhanced Rating Cord Connector |
|---|---|
| For Use With | Cable Gland Connector |
| Hub Size | 1 1/4 in MNPT |
| Material | Aluminum |
| Color | Silver |
| Length | 4.71 in |
| Standards | Class 4418-05, CSA LR4484, RoHS Compliance |
| Body Color - Cord Connector | Silver |
| Box Connection | 1-1/4 in MNPT |
| Number of Cords | 1 |
| Length - Box to End of Connector | 3-7/8 in |
| Connector Type | Straight |
| Insulated | No |
| Strain Relief Type | No External Strain Relief |
| Style - Connector | Straight |
| Item - Cord Connector | Enhanced Rating Cord Connector |
| Hazardous Location Rating | Class I, Zone 1, Class I, Zone 2, Division 2 |
| Material - Cord Connector | Aluminum |
| Gland Color Code | No Code |
| Material - External Strain Relief | No External Strain Relief |
| Length - External Strain Relief | No External Strain Relief |
| Cord Dia. Range | 1.08 to 1.28 in |
| Min. Throat Dia. | 1-1/4 in |
| Hub Trade Size | 1-1/4" |
| Series | TCF |
| For Minimum Cable OD | 1.08 in |
| Maximum Operating Temperature | 194 deg F |
| IP Rating | IP66 |
| Connection Orientation | Straight |
| Thread Size | 1 1/4 in |
| Collar Material | Aluminum |
| Thread Type | NPT Thread |
| Resistance Properties | Corrosion Resistant |
| Body Color | Silver |
| Overall Length | 4-11/16 in |
| Compatible Conduit Trade Size | 1 1/4 in |
| For Maximum Cable OD | 1.28 in |
| Bushing Material | Neoprene |
| Body Material | Aluminum |
| Environmental Rating | Hazardous Locations, Vapour |
| Thread Gender | Male |
| Grommet Color Code | No Code |
| Minimum Operating Temperature | -40 deg F |
| Product Type | Tray/Cord Connectors |
| Size | 1-1/4 Inch |
| Application | Tray/Cord Fitting is The Safe and Cost Effective Choice for Increased Safety When Terminating Portable Cord and Try Cable In Hazardous Locations. |
| Package Quantity | 1 |
