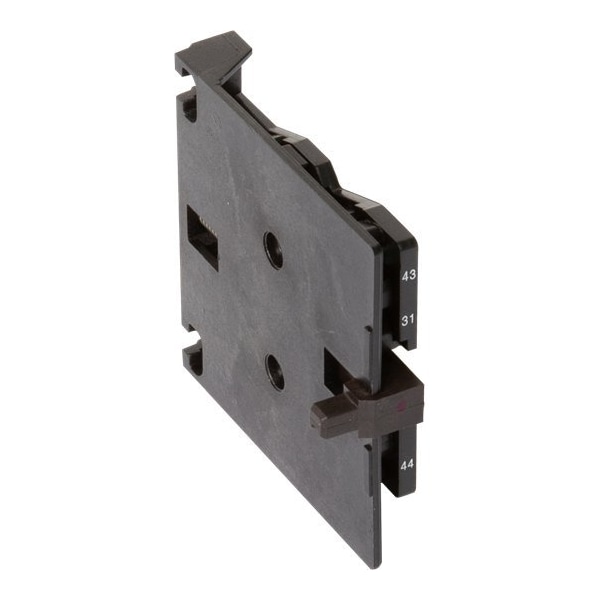

CAL16-11B, CONTACTO AUXILIAR, 1-ABIERTO / 1-CERRADO, 43443132
| Minimum Switching Capacity | 0.25 VA/ 12 V / 5 mA |
|---|---|
| Product Name | Auxiliary Contact Block |
| Replaced Product ID (OLD) | SK829001-B |
| Product Net Height | 68 mm |
| Rated Making Capacity acc. to IEC 60947-5-1 | 10 x Ie AC-15 |
| Connecting Terminals (delivered in open position) | M 3.5 (+,-) pozidriv 2 screw with cable clamp |
| Power Loss | at Rated Operating Conditions per Pole 0.2 W |
| Rated Short-time Withstand Current (Icw) | for 0.1 s 100 Afor 1 s 50 A |
| Suitable For | A-line |
| Rated Operational Current AC-15 (Ie) | (220 / 240 V) 6 A(24 / 127 V) 6 A(380 / 440 V) 4 A(500 V) 1 A(690 V) 1 A |
| Product Net Depth / Length | 70 mm |
| Rated Frequency (f) | Supply Circuit 50 60 Hz |
| Rated Operational Current DC-13 (Ie) | (125 V) 1.8 A(24 V) 6 A(250 V) 0.6 A(48 V) 6 A(72 V) 4 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| Technical Information | AUXILIARY CONTACT |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, q = 40°C 16 A |
| Product Net Width | 12.5 mm |
| Product Main Type | CAL16 |
| Rated Breaking Capacity acc. to IEC 60947-5-1 | 10 x Ie AC-15 |
| Suitable for Product Class | CONTACTORS |
| Package Quantity | 1 |
