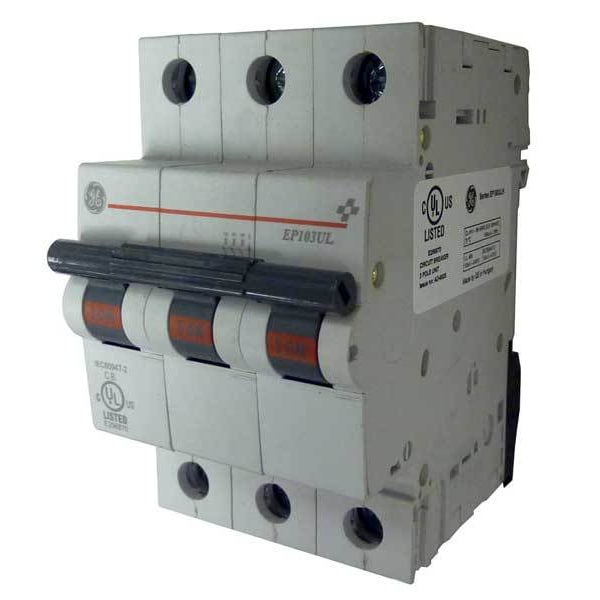

Circuit Breaker, EP100 Series, 63A, 3 Pole, 277/480V AC, 10kA at 277/480V AC, B Curve
| Item | Circuit Breaker |
|---|---|
| Series | EP100 |
| Amps | 63A |
| Number of Poles | 3 |
| AC Voltage Rating | 277/480V AC |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 10kA at 277/480V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Screw |
| Width | 2.13 in |
| Depth | 3 in |
| Height | 3.38 in |
| DC Voltage Rating | 110V DC |
| Curve Type | B |
| Min. Wire Size | 14 AWG |
| Max. Wire Size | 4 AWG |
| Standards | CSA C22.2 No.235, EAC, IEC 898-1, IEC 947-2UL , UL1077, VDE |
| Application | Commercial, Industrial, Supplementary Protection |
| Meets UL Type | UL 1077 |
| Package Quantity | 1 |
