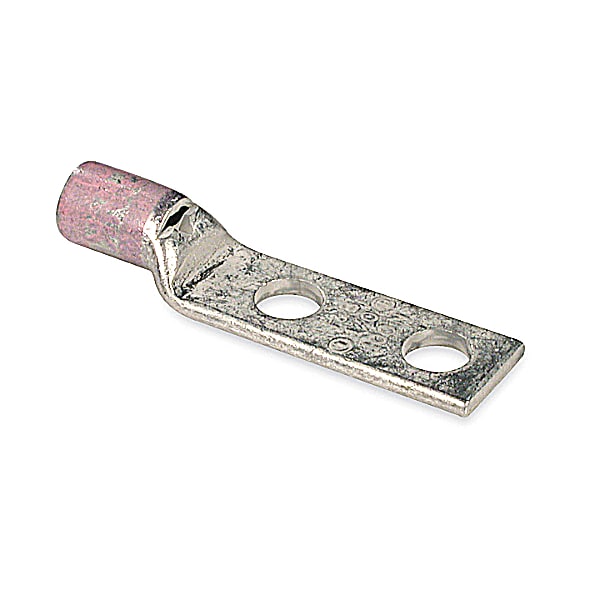

Terminal de compresión, calibre 1/0 AWG, longitud de 2.88 pulgadas, color rosa.
| Cable Size | 1/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 3/4 in |
| Material | Electro-Tin Plated High-Conductivity Wrought Copper |
| Length | 2.88 in |
| Color Code | Pink |
| Peep Hole | Yes |
| Item | Two-Hole Lug Compression Connector |
| Stud Size | 3/8 in |
| Hole Center to Center | 1 in |
| Die Code | 42 |
| Standards | CSA Certified, UL Listed |
| Color | Pink |
| Barrel Size | Standard |
| Inspection Hole | Yes |
| Maximum Voltage | 35 kV AC |
| For Conductor Material | Copper |
| For Wire Type | Stranded |
| For Stud Size | 3/8 in |
| For Stranded Copper Wire Size - Maximum | 1/0 AWG |
| Product Type | Barrel |
| Product Name | ELECTRICAL TERMINAL |
| Voltage Rating | 35 kV |
| Insulated | No |
| Standard | UL E9809 |
| Connecting angle | 180° |
| Surface protection | Tinned |
| Number of mounting holes | 2 |
| Number Of Holes | 2 |
| Insulation | None |
| Package Quantity | 1 |
