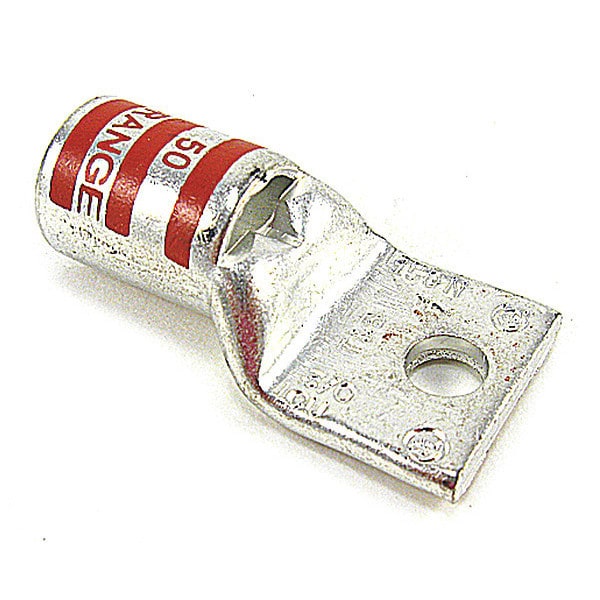

Terminal de compresión, calibre 3/0 AWG, longitud de 1.75 pulgadas, color dorado.
| Cable Size | 3/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.92 in |
| Material | Electro-Tin Plated High-Conductivity Wrought Copper |
| Length | 1-3/4 in |
| Color Code | Orange |
| Item | One-Hole Lug Compression Connector |
| Peep Hole | Yes |
| Standards | CSA Certified, UL Listed |
| Die Code | 50 |
| Hole Center to Center | Not Applicable |
| Stud Size | 44930 |
| Barrel Length | Standard |
| Inspection Hole | Yes |
| For Stud Size | 1/4 in |
| Maximum Voltage | 35 kV AC |
| Barrel Size | Standard |
| For Conductor Material | Copper |
| For Wire Type | Stranded |
| For Stranded Copper Wire Size - Maximum | 3/0 AWG |
| C (inches) | 0.92 |
| Number of Studs | 1 |
| Finish | Tin-Plated |
| F (inches) | 0.25 |
| Tongue Angle | Straight |
| Barrel Shape | Standard |
| Wire Size | 3/0 AWG |
| Marking | Standard |
| Hole Shape | Round |
| D (inches) | 0.13 |
| A (inches) | 1.75 |
| E (inches) | 0.63 |
| Tongue Width | Standard |
| B (inches) | 0.65 |
| Die Color | Orange |
| Insulated | No |
| Insulation | None |
| Standard | UL E9809 |
| Number Of Holes | 1 |
| Voltage Rating | 35 kV |
| Surface protection | Tinned |
| Connecting angle | 180° |
| Number of mounting holes | 1 |
| Package Quantity | 1 |
