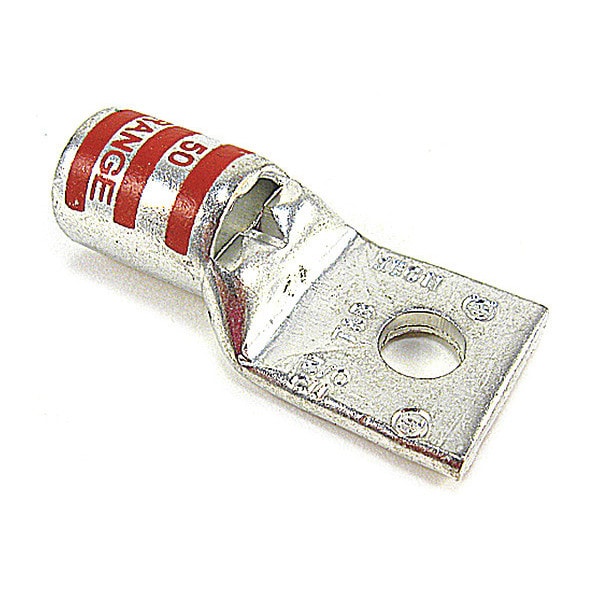

Compression Lug, 3/0 Awg, L 1.98 In, Or
| Cable Size | 3/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.92 in |
| Material | Electro-Tin Plated High-Conductivity Wrought Copper |
| Length | 1.98 in |
| Color Code | Orange |
| Item | One-Hole Lug Compression Connector |
| Peep Hole | Yes |
| Stud Size | 5/16 in |
| Standards | CSA Certified, UL Listed |
| Die Code | 50 |
| Hole Center to Center | Not Applicable |
| For Conductor Material | Copper |
| Barrel Size | Standard |
| Inspection Hole | Yes |
| Maximum Voltage | 35 kV AC |
| For Wire Type | Stranded |
| For Stranded Copper Wire Size - Maximum | 3/0 AWG |
| For Stud Size | 5/16 in |
| Color | Orange |
| Product Type | Barrel |
| Voltage Rating | 35 kV |
| Product Name | ELECTRICAL TERMINAL |
| Insulation | None |
| Standard | UL E9809 |
| Connecting angle | 180° |
| Number of mounting holes | 1 |
| Insulated | No |
| Surface protection | Tinned |
| Number Of Holes | 1 |
| Package Quantity | 1 |
