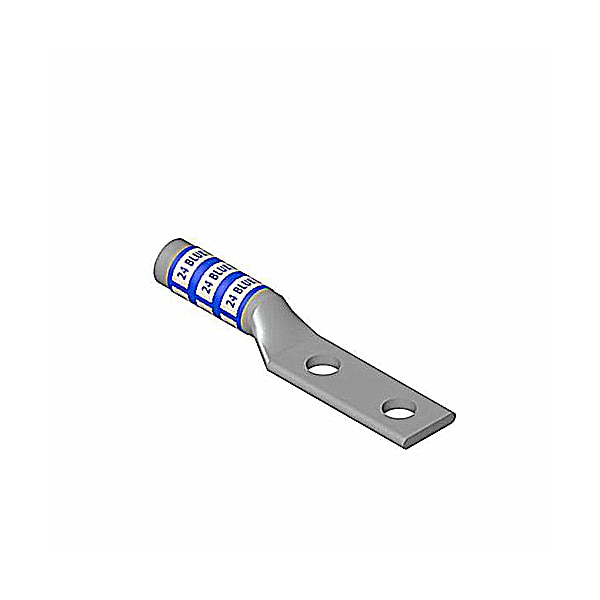

Terminal de compresión, larga, 300 Kcm, 5.2 pulgadas, blanco.
| Cable Size | 300 kcmil |
|---|---|
| Connector Type | Long Barrel |
| Width | 1-1/4 in |
| Material | Electro-Tin Plated High-Conductivity Wrought Copper |
| Length | 5.23 in |
| Color Code | White |
| Item | Two-Hole Lug Compression Connector |
| Peep Hole | No |
| Stud Size | 1/2 in |
| Die Code | 66 |
| Hole Center to Center | 1.75 in |
| Standards | CSA Certified, UL Listed |
| Color | White |
| Maximum Voltage | 35 kV AC |
| Barrel Size | Long |
| For Conductor Material | Copper |
| For Wire Type | Stranded |
| For Stud Size | 1/2 in |
| Inspection Hole | No |
| For Stranded Copper Wire Size - Maximum | 300 kcmil |
| Product Name | ELECTRICAL TERMINAL |
| Product Type | Barrel |
| Voltage Rating | 35 kV |
| Surface protection | Tinned |
| Insulated | No |
| Number Of Holes | 2 |
| Insulation | None |
| Standard | UL E9809 |
| Connecting angle | 180° |
| Number of mounting holes | 2 |
| Package Quantity | 1 |
