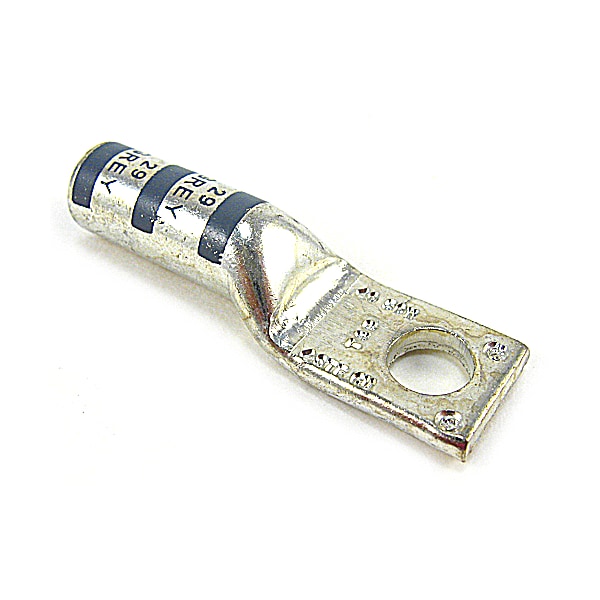

Terminal de compresión, largo, calibre 4, 1.7 pulgadas, gris.
| Cable Size | 4 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.52 in |
| Material | Electro-Tin Plated High-Conductivity Wrought Copper |
| Length | 1.7 in |
| Color Code | Gray |
| Peep Hole | No |
| Item | One-Hole Lug Compression Connector |
| Stud Size | 1/4 in |
| Standards | CSA Certified, UL Listed |
| Die Code | 29 |
| Hole Center to Center | Not Applicable |
| Color | Gray |
| For Conductor Material | Copper |
| Barrel Size | Long |
| For Wire Type | Stranded |
| Maximum Voltage | 35 kV AC |
| For Stranded Copper Wire Size - Maximum | 4 AWG |
| For Stud Size | 1/4 in |
| Inspection Hole | No |
| Product Name | ELECTRICAL TERMINAL |
| Product Type | Barrel |
| Voltage Rating | 35 kV |
| Insulation | None |
| Number of mounting holes | 1 |
| Number Of Holes | 1 |
| Insulated | No |
| AWG size | 4 |
| Connecting angle | 180° |
| Surface protection | Tinned |
| Standard | UL E9809 |
| Package Quantity | 1 |
