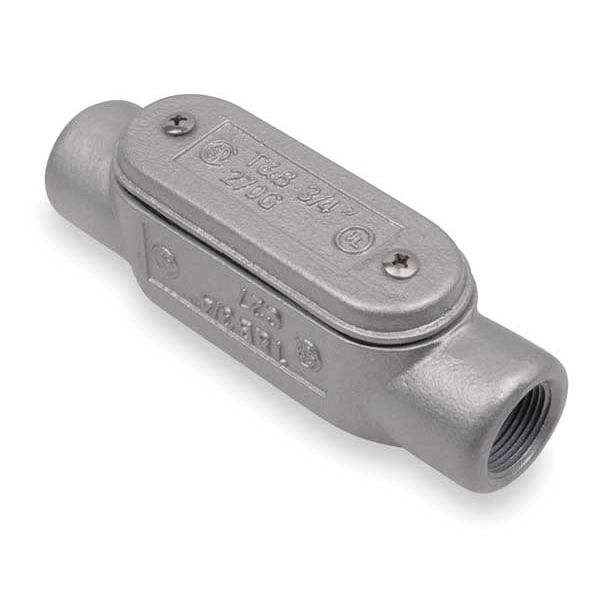

Conduit Outlet Body w/Cover, Iron, C
| Item | Conduit Outlet Body |
|---|---|
| Conduit Outlet Body Type | Conduit Outlet Body with Cover |
| Hazardous Location | No |
| Hub Size | 3/4 in |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | C |
| Material | Iron |
| Conduit Outlet Body Capacity | 6.6 cu in |
| Conduit Outlet Body Hub Size | 3/4 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | IMC, RMC |
| Special Features | BlueKote Teflon Based Internal Finish |
| Standards | CSA, UL |
| Conduit Outlet Hub Size | 3/4 in |
| Color | Gray |
| Back Type | Flat |
| Form | Form 7 |
| Body Style | C |
| Finish | Zinc Plated with Powder Coated |
| Trade Size | 3/4 in |
| Shape | C |
| Cover Included | Yes |
| Thread Type | NPT |
| Connection Orientation | 90 Degrees |
| Weight | 1.75 lb |
| Compatible Conduit Trade Size | 3/4 in |
| Hub Style | Threaded |
| Thread Size | 3/4 in |
| Compatible Cover | 270F |
| Compatible Conduit Type | RMC, IMC |
| Gasket Included | Yes |
| Number of Pieces | 5 |
| Body Capacity | 6.6 cu in |
| Connection Type | Threaded |
| Thread Gender | Female |
| Number of Hubs | 2 |
| Body Type | Conduit Outlet Body with Cover |
| Outer Dimensions (inches) | 9.75 x 7 x 2.5 |
| Standard | UL E2969, CSA |
| Type | Gasket, Cover, Form 7 Conduit Body |
| Application | Conduit Bodies are Installed In Conduit Systems to Connect Sections, Act As Pull Outlets When Conductors are Being Installed and Provide Easy Access for Splices In Branch Conductors. |
| Features | Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain.; Triple-layer protection...including two layers of epoxy coating which stops corrosion in its tracks.; Bodies are designed with a flat back, allowing more cubic inch capacity.; T&B Form 7 bodies and covers are interchangeable with Crouse-Hinds and Appletons Form 7 bodies and covers.; Conduit bodies make 90 degree bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes. |
| Package Quantity | 1 |
