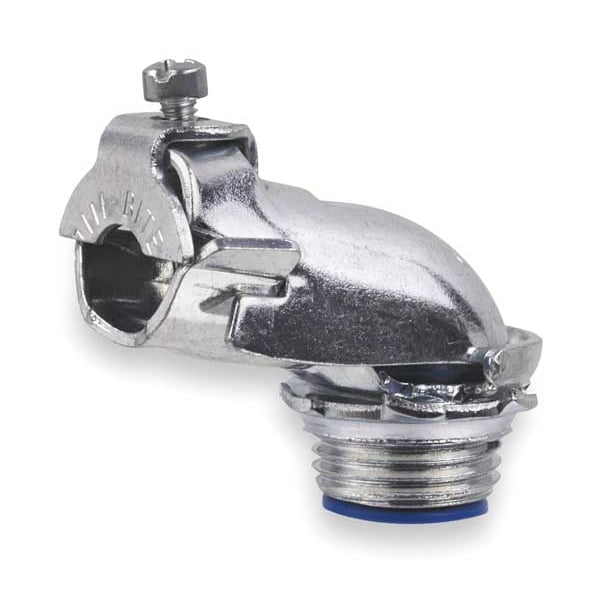

Flexible AC/MC Grounding Connector, 3/8 in, Threaded, Steel, Electro Zinc Plated, Silver
| Item | Flexible AC/MC |
|---|---|
| Conduit Fitting Type | Grounding Connector |
| Trade Size | 3/8 in |
| Connection Type | Threaded |
| Material | Steel |
| Finish | Electro Zinc Plated |
| Color | Silver |
| Overall Length | 1-19/32 in |
| Cable Opening Min. | 0.47 in |
| Knockout Size | 1/2 in |
| Box Connection | Threaded Electrical Box Connection |
| Cable Clamping Method | Saddle Clamp |
| Standards | UL Listed File No. E 23018/CSA File No. 2884 / RoHS Compliance |
| Description/Special Features | Cable Opening Range 0.470 to 0.660", Knockout Size 1/2", For Use with Armored Cable and Flexible Metal Conduit |
| Use With - Metallic Building Cable | AC, Flexible Conduit, MC |
| NPT Size | 1/4 to 4" |
| Cable Opening Max. | 0.66 in |
| Style - Connector | 90 Degrees |
| Insulated | Yes |
| Insulation Type | Nylon |
| Features | By Far The Easiest and Best to Install When Making Sharp Bends at the Enclosure or Equipments |
| Thread Size | 1/2" |
| Connection Orientation | 90 Degrees |
| Overall Height | 1-11/32 in |
| Overall Width | 15/16 in |
| Connector Style | 90 Degrees |
| Compatible Knockout Trade Size | 1/2 in |
| Thread Type | NPS |
| For Maximum Cable OD | 0.66 in |
| For Minimum Cable OD | 0.47 in |
| Item - Building Cable Connector | Metallic Sheath Cable Connector |
| Fitting Sub-Category | Elbows |
| Package Quantity | 1 |
