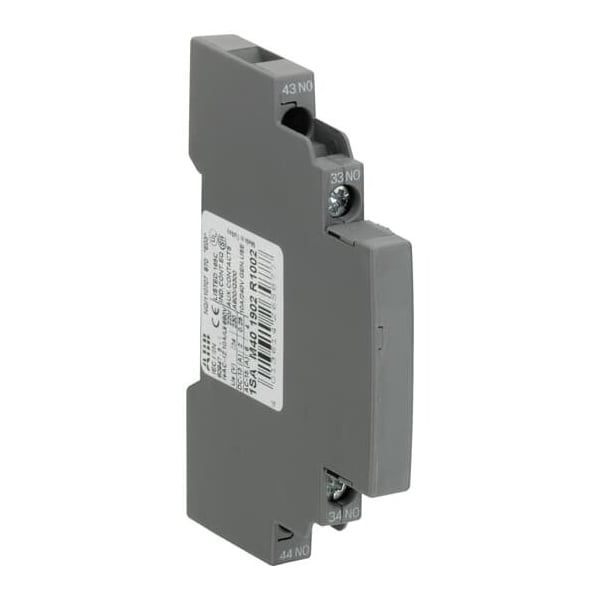

HKS4-20, AUX SW 2-NO MS4XX, PK 2
HKS4-20, SW AUX 2-NO MS4XX, PK 2
| Contact Rating UL/CSA | B600Q600 |
|---|---|
| Rated Operational Current AC-15 (Ie) | (230 V) 4 A(24 V) 6 A(400 V) 3 A |
| Standards | CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1IEC/EN 60947-5-1UL 508 |
| Product Net Depth / Length | 69 mm |
| Product Net Height | 89 mm |
| Product Net Width | 9 mm |
| Maximum Operating Voltage UL/CSA | Auxiliary Circuit 600 V AC/DC |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.5 ... 1.5 mm²Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible 1/2x 0.5 ... 1.5 mm²Flexible 1/2x 0.75 ... 1 mm²Rigid 1/2x 0.5 ... 1.5 mm²Rigid 1/2x 0.75 ... 2.5 mm² |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 ... 10.3 in·lb |
| Number of Auxiliary Contacts CO (SPDT) | 0 |
| Wire Stripping Length | Auxiliary Circuit 10 mm |
| Short-Circuit Protective Devices | Auxiliary Circuit - gG Type Fuses 10 A |
| Recommended Screw Driver | 2 (Pozidriv) |
| Rated Operational Voltage | 690 VMain Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 HzAuxiliary Circuit 60 HzAuxiliary Circuit DC |
| Suitable For | MS450MS451MO450MS495MS496MS497MO495MO496 |
| Product Name | Auxiliary Contact |
| Number of Auxiliary Contacts NC | 0 |
| Accessory Type | Contacts |
| Suitable for Product Class | Manual Motor Starter |
| Degree of Protection | IP20 |
| Rated Operational Current DC-13 (Ie) | (110 V) 0.5 A(220 V) 25 A(24 V) 1 A |
| Conventional Free-air Thermal Current (Ith) | 10A |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 18-14 AWGStranded 1/2x 18-14 AWG |
| Tightening Torque | Auxiliary Circuit 0.8 ... 1.2 N·m |
| Ambient Air Temperature | Operation -25 ... +70°CStorage -50 ... +80°C |
| Accessory Group | Electrical |
| Rated Insulation Voltage (Ui) | 690 V |
| Number of Auxiliary Contacts NO | 2 |
| Package Quantity | 2 |
