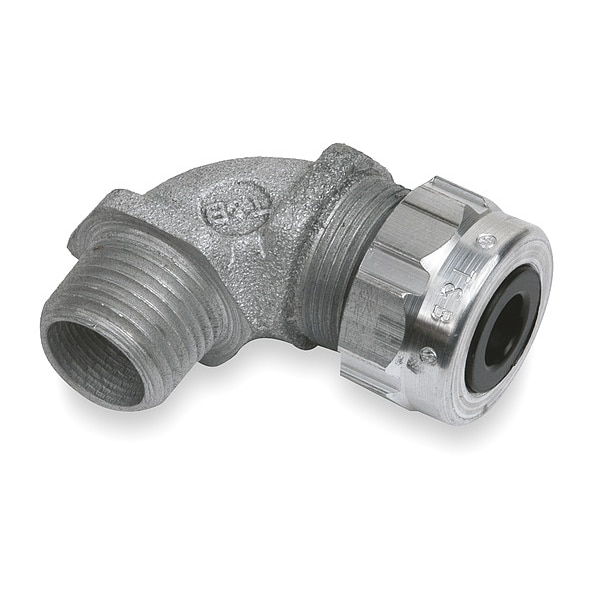

Liquid Tight Connector, 1/2in., 90 deg, Slv
| Item - Cord Connector | Liquid Tight Cord Connector |
|---|---|
| Item | Liquid Tight Cord Connector |
| Style - Connector | Degrees |
| Hub Size | 1/2 in MNPT |
| Conduit Size | 1/2" |
| Material | Aluminum |
| Cord Dia. Range | 0.13 to 0.38 in |
| Color | Silver |
| Box Connection | 1/2 in MNPT |
| For Use With | Cable Gland Connector |
| Material - Cord Connector | Aluminum |
| Material - External Strain Relief | No External Strain Relief |
| Gland Color Code | No Code |
| Number of Cords | 1 |
| Standards | CSA 52391, NEC 501-4(B), UL E13938 |
| Body Color - Cord Connector | Silver |
| Connector Type | Degrees |
| Length - Box to End of Connector | 1-7/8 in |
| Length | 1-3/4 in |
| Strain Relief Type | No External Strain Relief |
| Insulated | No |
| Hazardous Location Rating | Not Rated |
| Length - External Strain Relief | No External Strain Relief |
| Environmental Rating | Dry, Wet |
| Series | ASG-90 |
| Bushing Material | Rubber |
| For Minimum Cable OD | 1/8 in |
| Thread Type | NPT Thread |
| Connection Orientation | 90 Degrees |
| Thread Gender | Male |
| Body Color | Silver |
| Collar Material | Aluminum |
| Grommet Color Code | No Code |
| For Maximum Cable OD | 3/8 in |
| Minimum Operating Temperature | -4 deg F |
| Body Material | Aluminum |
| Thread Size | 1/2 in |
| Compatible Conduit Trade Size | 1/2 in |
| Liquid Tight | Yes |
| Maximum Operating Temperature | 221 deg F |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Colour | Natural colour |
| Nominal thread size inch/gas pipe thread | 1/2 in |
| Environmental Conditions | Ordinary, Wet, or Dry Locations |
| Outer Dimensions (inches) | 10.9 x 8.8 x 5.1 |
| Special Features | Extended Range with Superior Strain Relief |
| Material quality | Aluminium |
| Standard | CSA, UL E13938 52391 |
| Type | Cord Connectors-90 Degree |
| Conductor Range | 1/8 to 3/8 in |
| Application | Provide a Means for Passing a Cord Cable Into an Enclosure Through a Bulkhead |
| Size | 1/2 Inch |
| Suitable for cable diameter | 3.175 to 9.525 mm |
| Inner Dimensions (inches) | 6x5x4 |
| Thread length | 15.875 mm |
| Package Quantity | 1 |
