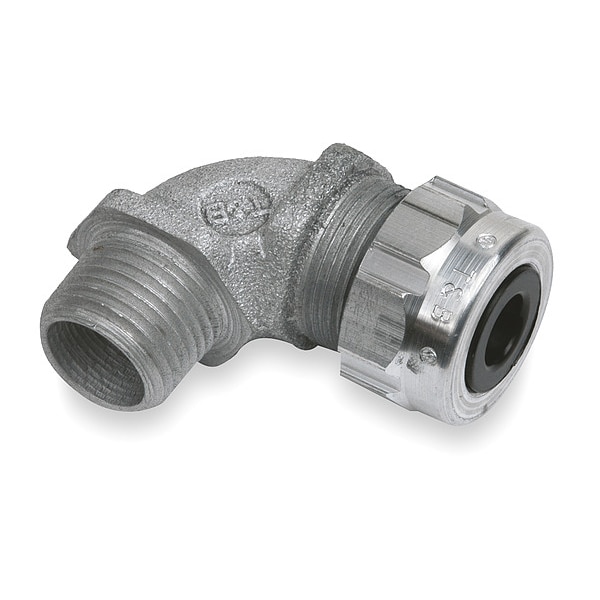

Liquid Tight Connector, 1/2in., 90 deg, Slv
| Item | Liquid Tight Cord Connector |
|---|---|
| Material | Aluminum |
| Box Connection | 1/2 in MNPT |
| Connector Type | Degrees |
| Item - Cord Connector | Liquid Tight Cord Connector |
| Conduit Size | 1/2" |
| Standards | CSA 52391, NEC 501-4(B), UL E13938 |
| Number of Cords | 1 |
| Length - Box to End of Connector | 1-7/8 in |
| Material - External Strain Relief | No External Strain Relief |
| Style - Connector | Degrees |
| Material - Cord Connector | Aluminum |
| Length | 1-3/4 in |
| Body Color - Cord Connector | Silver |
| Cord Dia. Range | 0.31 to 0.56 in |
| Strain Relief Type | No External Strain Relief |
| Insulated | No |
| Gland Color Code | No Code |
| Hazardous Location Rating | Not Rated |
| Color | Silver |
| Length - External Strain Relief | No External Strain Relief |
| For Use With | Cable Gland Connector |
| Hub Size | 1/2 in MNPT |
| Bushing Material | Rubber |
| Environmental Rating | Dry, Wet |
| Collar Material | Aluminum |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Thread Size | 1/2 in |
| Body Color | Silver |
| Maximum Operating Temperature | 221 deg F |
| Grommet Color Code | No Code |
| Thread Type | NPT Thread |
| Liquid Tight | Yes |
| Body Material | Aluminum |
| For Maximum Cable OD | 0.56 in |
| Series | ASG-90 |
| Connection Orientation | 90 Degrees |
| For Minimum Cable OD | 0.31 in |
| Compatible Conduit Trade Size | 1/2 in |
| Thread Gender | Male |
| Minimum Operating Temperature | -4 deg F |
| Environmental Conditions | Ordinary, Wet, or Dry Locations |
| Type | Cord Connectors-90 Degree |
| Thread length | 15.875 mm |
| Colour | Natural colour |
| Suitable for cable diameter | 7.874 to 14.224 mm |
| Inner Dimensions (inches) | 6x5x4 |
| Conductor Range | 0.31 to 0.56 in |
| Nominal thread size inch/gas pipe thread | 1/2 in |
| Application | Provide a Means for Passing a Cord Cable Into an Enclosure Through a Bulkhead |
| Outer Dimensions (inches) | 8.4 x 5.2 x 4 |
| Material quality | Aluminium |
| Standard | CSA, UL E13938 52391 |
| Size | 1/2 Inch |
| Special Features | Extended Range with Superior Strain Relief |
| Package Quantity | 1 |
