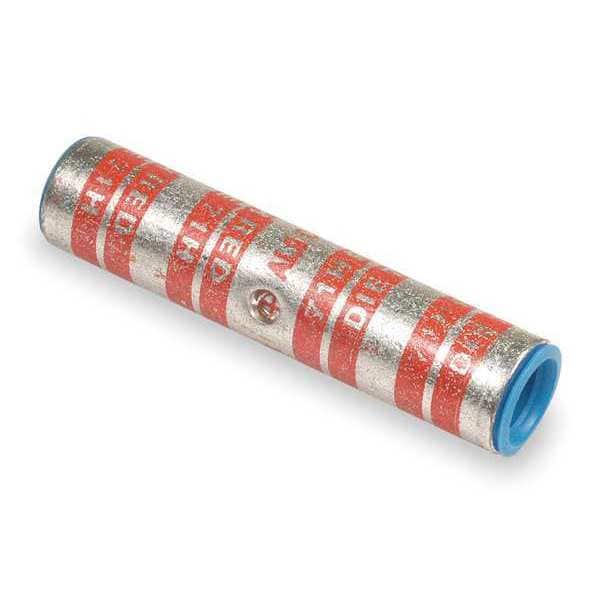

Unión de barril largo, 3.91 pulgadas de largo, Rojo
| Item | Long-Barrel Splice |
|---|---|
| Material | Copper |
| Length | 3.91 in |
| Color Code | Red |
| Color | Red |
| Overall Length | 3.91 in |
| Wire Gauge | 250 kcmil |
| Standards | CSA Certified, UL Listed |
| Die Code | 71 |
| Outside Dia. | 0.92 in |
| Voltage Rating | 35 kV |
| Length (Straight Wireway) | 3.91 in |
| Contact Finish | Tin |
| Barrel Size | Long |
| RoHS Compliant | Yes |
| For Conductor Material | Aluminum |
| Maximum Voltage | 35 kV |
| Maximum Wire Insulation Diameter | 0.92 in |
| Seam Style | Seamless |
| Maximum Wire Size | 250 kcmil |
| Barrel Finish | Tin Plated |
| Compatible with Product Type | Copper Conductor |
| Termination Style | Crimp |
| Barrel Outside Diameter | 0.92 in |
| Special Features | For Aluminum and Copper Concentric Conductors and Compact Code Aluminum Strandings |
| For Wire Type | Stranded |
| Number of Crimps | 4 |
| Minimum Wire Size | 250 kcmil |
| Maximum Conductors | 1 |
| Contact Material | Aluminum |
| Maximum Operating Temperature | 194 deg F |
| Features | For aluminum and copper concentric conductors and compact code aluminum strandings.; Connectors supplied with T&B Oxide inhibitor compound in wire bore.; Permits aluminum conductors to be spliced to copper or aluminum conductors.; Application Tools: TBM6, TBM6S, TBM8, TBM8S |
| Product Name | ELECTRICAL SPLICE |
| Special Functions | For aluminum and copper concentric conductors and compact code aluminum strandings. |
| Surface Finishing | Tin-Plated |
| Number of Batteries | 0 |
| Product Type | Aluminum Splice |
| Temperature Range | 90°C |
| Insulation | None |
| Standard | UL E9809 |
| Temperature Rating | 90 C |
| Package Quantity | 1 |
