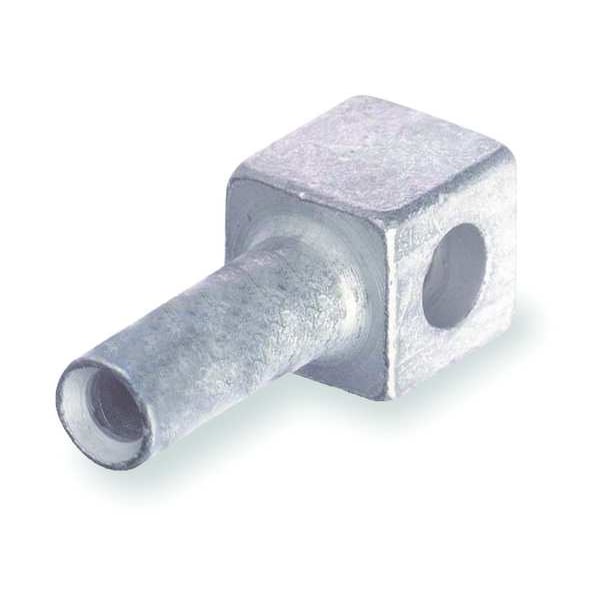

Motor L-Disconnect, Hembra, 16-14 AWG, Azul
| Item | Motor Lead Disconnect |
|---|---|
| For Use With | 3KH45, 3KH46 and 3KH54 |
| Wire Gauge | 16 to 14 AWG |
| Body Size | 1 |
| Material | Copper |
| Color Code | Blue |
| Color | Blue |
| Die Code | Not Applicable |
| Overall Length | 25/32 in |
| Connector Type | Pigtail Connector |
| Wire Strip Length | 3/8 in |
| Male/Female | Female |
| Plug Length | Not Applicable |
| Standards | UL E9809 |
| Plug Outside Dia. | 0.37 in |
| Features | Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.; Quick disconnect - no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure. Meets or exceeds electrical and mechanical performance of bolted commections.; Female disconnects equipped with beryllium copper louvered contact bands for dependable connections.; Application Tools: WT112M, WT111M, WT2000, ERG4002 |
| Number of Wires | 2 |
| Finish | Tin Plated |
| Maximum Voltage | 600 V |
| Maximum Wire Size | 14 AWG |
| Overall Depth | 3/8 in |
| Strip Length | 3/8 in |
| Connection Orientation | Pigtail |
| Termination Style | Pigtail |
| Minimum Wire Size | 16 AWG |
| Plug OD | Not Applicable |
| Maximum Operating Temperature | 194 deg F |
| Gender | Female |
| Overall Width | 3/8 in |
| Compatible Manufacturer Model Number | ERG4002, WT111M, WT112M, WT2000 |
| Standard | UL E9809 |
| Type | Motor Lead Female Disconnect |
| Special Features | Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot. |
| Package Quantity | 1 |
