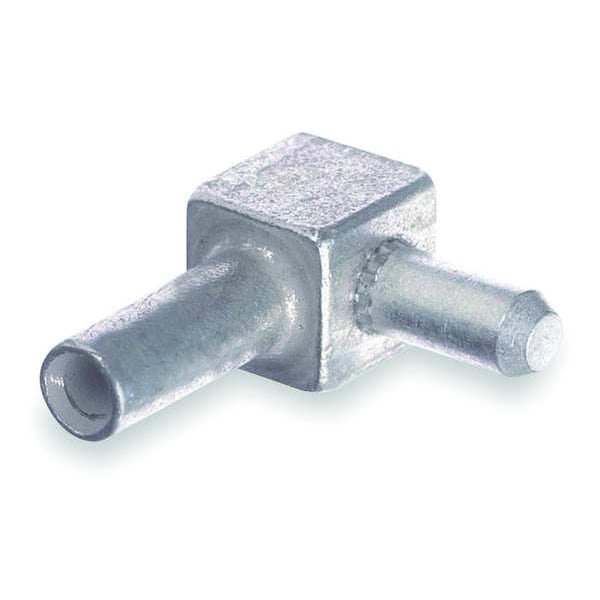

Desconexión de motor macho, calibre 6 AWG, azul.
| Item | Motor Lead Disconnect |
|---|---|
| Style | Male (One Load) |
| Wire Gauge | 6 AWG |
| Wire Size | #6 AWG |
| Material | Copper |
| Body Size | 2 |
| Color Code | Blue |
| Die Code | 24 |
| Overall Length | 1-1/32 in |
| Connector Type | Pigtail Connector |
| Wire Strip Length | 1/2 in |
| Male/Female | Male |
| Standards | UL E9809 |
| Plug Length | 1.02 in |
| Plug Outside Dia. | 0.37 in |
| Features | Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.; Quick disconnect - no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure. Meets or exceeds electrical and mechanical performance of bolted commections.; Application Tools: TBM45S, TBM6, TBM6S, TBM5, TBM5S, TBM8, TBM8S |
| Minimum Wire Size | 6 AWG |
| Overall Width | 1 in |
| Finish | Tin Plated |
| Plug OD | 0.37 in |
| Compatible Manufacturer Model Number | TBM45S, TBM5, TBM5S, TBM6, TBM6S, TBM8, TBM8S |
| Maximum Wire Size | 6 AWG |
| Number of Wires | 2 |
| Termination Style | Pigtail |
| Gender | Male |
| Strip Length | 1/2 in |
| Overall Depth | 1/2 in |
| Maximum Operating Temperature | 194 deg F |
| Connection Orientation | Pigtail |
| Maximum Voltage | 600 V |
| F (inches) | 0.37 |
| D (inches) | 1 |
| C (inches) | 1.02 |
| B (inches) | 0.5 |
| Die Color | Blue |
| Boot Insulation | MDBOOT2 |
| A (inches) | 0.5 |
| Application Tools | TBM45S, TBM6, TBM6S, TBM5, TBM5S, TBM8, TBM8S |
| Voltage Rating | 600 V |
| Strip Length (inches) | 44,928 |
| E (inches) | 0.5 |
| Type | Motor Lead Male Disconnect |
| Special Features | Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot. |
| Package Quantity | 1 |
