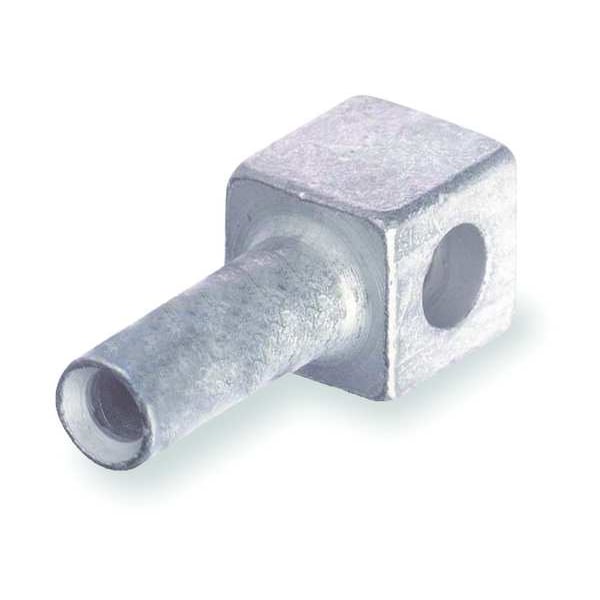

Desconexión de plomo de motor, hembra, 4/0AWG, morado.
| Item | Motor Lead Disconnect |
|---|---|
| Wire Gauge | 4/0 |
| Material | Copper |
| Body Size | 3 |
| Color Code | Purple |
| Color | Purple |
| Die Code | 54 |
| Overall Length | 1-13/16 in |
| Connector Type | Pigtail Connector |
| Wire Strip Length | 3/4 in |
| Male/Female | Female |
| Plug Length | Not Applicable |
| Standards | UL E9809 |
| Plug Outside Dia. | 0.37 in |
| Features | Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.; Quick disconnect - no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure. Meets or exceeds electrical and mechanical performance of bolted commections.; Female disconnects equipped with beryllium copper louvered contact bands for dependable connections.; Application Tools: TBM6, TBM6S, TBM5, TBM5S, TBM8, TBM8S |
| Overall Width | 7/8 in |
| Overall Depth | 7/8 in |
| Gender | Female |
| Maximum Operating Temperature | 194 deg F |
| Maximum Wire Size | 2/0 AWG |
| Termination Style | Pigtail |
| Minimum Wire Size | 4/0 AWG |
| Connection Orientation | Pigtail |
| Plug OD | Not Applicable |
| Maximum Voltage | 600 V |
| Compatible Manufacturer Model Number | TBM5, TBM5S, TBM6, TBM6S, TBM8, TBM8S |
| Finish | Tin Plated |
| Strip Length | 3/4 in |
| Product Name | ELECTRICAL TERMINAL |
| Surface Finishing | Tin Plated |
| Special Functions | Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot. |
| Product Type | Motor Lead Female Disconnect |
| Special Features | Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot. |
| Package Quantity | 1 |
