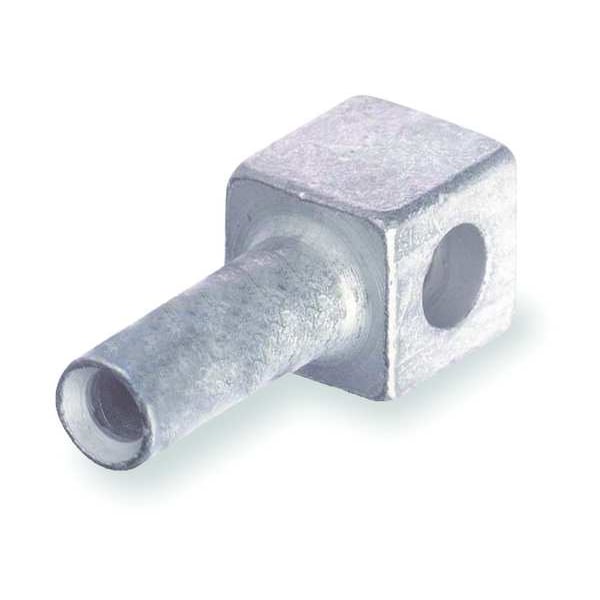

Desconexión de plomo del motor, hembra, 8 AWG, rojo
| Item | Motor Lead Disconnect |
|---|---|
| Wire Gauge | 8 AWG |
| Body Size | 1 |
| Material | Copper |
| Color Code | Red |
| Color | Red |
| Die Code | 21 |
| Overall Length | 27/32 in |
| Connector Type | Pigtail Connector |
| Wire Strip Length | 7/16 in |
| Male/Female | Female |
| Plug Outside Dia. | 1/4 in |
| Standards | UL E9809 |
| Plug Length | Not Applicable |
| Features | Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.; Quick disconnect - no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure. Meets or exceeds electrical and mechanical performance of bolted commections.; Female disconnects equipped with beryllium copper louvered contact bands for dependable connections.; Application Tools: TBM45S, TBM6, TBM6S, TBM5, TBM5S, TBM8, TBM8S |
| Minimum Wire Size | 8 AWG |
| Overall Depth | 3/8 in |
| Connection Orientation | Pigtail |
| Strip Length | 7/16 in |
| Maximum Voltage | 600 V |
| Compatible Manufacturer Model Number | TBM45S, TBM5, TBM5S, TBM6, TBM6S, TBM8, TBM8S |
| Termination Style | Pigtail |
| Maximum Wire Size | 8 AWG |
| Gender | Female |
| Plug OD | Not Applicable |
| Overall Width | 3/8 in |
| Maximum Operating Temperature | 194 deg F |
| Finish | Tin Plated |
| Product Name | MOTOR PIGTAIL CONN |
| Product Type | Motor Lead Female Disconnect |
| Special Functions | Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot. |
| Surface Finishing | Tin Plated |
| Special Features | Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot. |
| Package Quantity | 1 |
