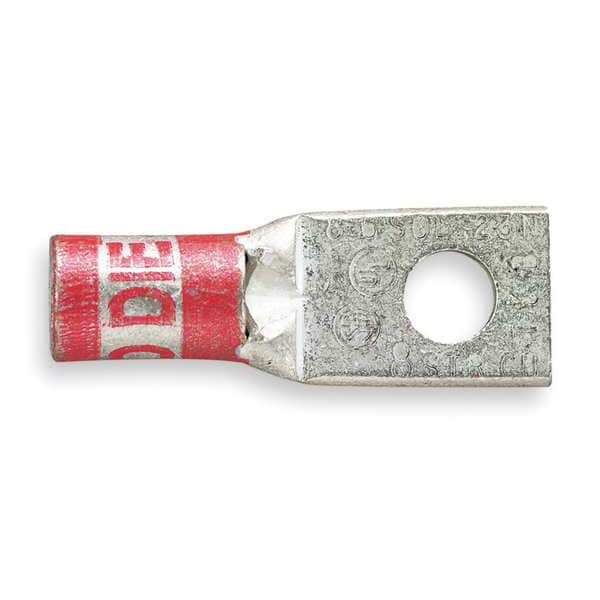

Conector de compresión de un orificio, 400 kcmil, paquete de 6.
| Cable Size | 400 kcmil |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.41 in |
| Material | Electro-Tin Plated High-Conductivity Wrought Copper |
| Length | 3.2 in |
| Color Code | Blue |
| Stud Size | 1/2 in |
| Plate Material | Tin |
| Tongue Style | Standard |
| Item | One-Hole Lug Compression Connector |
| Peep Hole | Yes |
| Die Code | 76 |
| Barrel Length | Short |
| Hole Center to Center | Not Applicable |
| Standards | CSA Certified, UL Listed |
| Hole Center to End | 1/2 in |
| Length (Straight Wireway) | 3.2 in |
| Tongue Thickness | 0.17 in |
| For Stranded Copper Wire Size - Maximum | 400 kcmil |
| Tongue Width | 1.41 in |
| For Conductor Material | Copper |
| Tongue Angle | Straight |
| For Wire Size | 400 kcmil |
| Barrel Outside Diameter | 0.96 in |

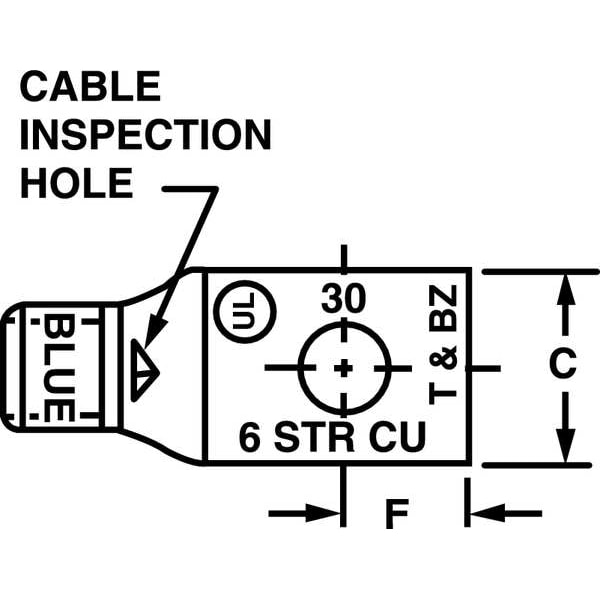

| Inspection Hole | Yes |
| Special Features | High-Conductivity Construction |
| Contact Finish | Tin |
| Barrel Size | Standard |
| For Wire Type | Stranded |
| Maximum Voltage | 35 kV AC |
| For Stud Size | 1/2 in |
| Overall Width | 1.41 in |
| Tongue Length | 1-1/4 in |

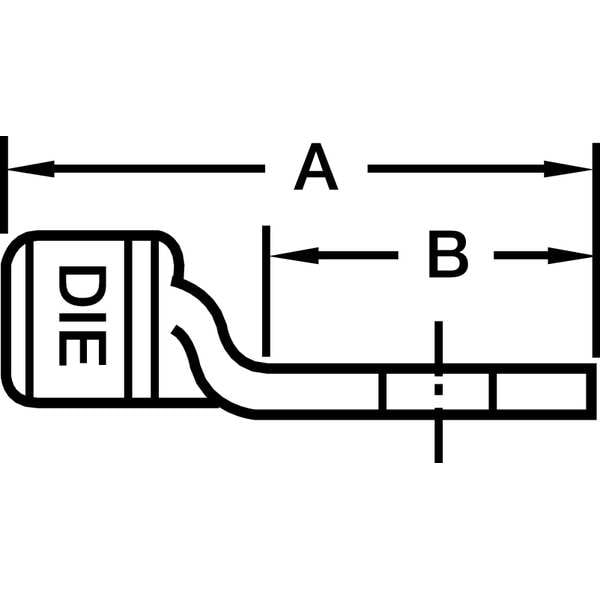

| Overall Length | 3.2 in |
| Color | Blue |
| Product Name | ELECTRICAL TERMINAL |
| Voltage Rating | 35 kV |
| Product Type | Barrel |
| Surface protection | Tinned |
| Insulated | No |
| Standard | UL E9809 |
| Number of mounting holes | 1 |
| Connecting angle | 180° |
| Insulation | None |
| Number Of Holes | 1 |
| Package Quantity | 6 |
