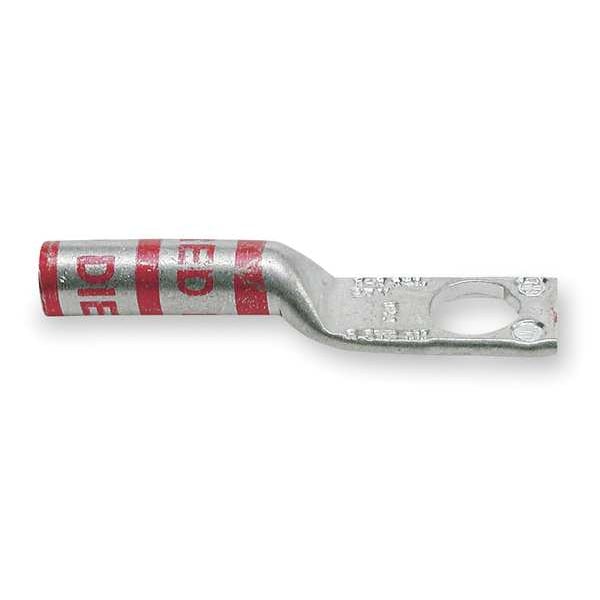

Conector de compresión de un agujero para terminal de compresión, 3/0 AWG.
| Cable Size | 3/0 |
|---|---|
| Connector Type | Long Barrel |
| Width | 1.06 in |
| Material | Electro-Tin Plated High-Conductivity Wrought Aluminum |
| Length | 2.83 in |
| Color Code | Ruby |
| Barrel Length | Long |
| Stud Size | 5/16 in |
| Plate Material | Electro Tin |
| Tongue Style | Standard |
| Construction | Wrought Aluminum |
| Standards | CSA Certified, UL Listed |
| Item | One-Hole Lug Compression Connector |
| Hole Center to End | 0.44 in |
| Die Code | 60 |
| Peep Hole | No |
| Hole Center to Center | Not Applicable |
| Length (Straight Wireway) | 2.83 in |
| Tongue Angle | Straight |
| Tongue Thickness | 0.22 in |
| Barrel Outside Diameter | 0.77 in |
| Barrel Size | Long |
| Maximum Voltage | 35 kV AC |
| Tongue Width | 1.06 in |
| For Stud Size | 5/16 in |
| For Wire Type | Stranded, Solid |
| Special Features | High-Conductivity |
| Overall Length | 2.83 in |
| Contact Finish | Tin |
| Inspection Hole | No |
| For Conductor Material | Aluminum |
| For Stranded Aluminum Wire Size - Maximum | 3/0 AWG |
| For Wire Size | 3/0 AWG |
| Overall Width | 1.06 in |
| Tongue Length | 1.09 in |
| Number Of Holes | 1 |
| Insulation | None |
| Standard | UL E9809 |
| Voltage Rating | 35 kV |
| Package Quantity | 1 |
