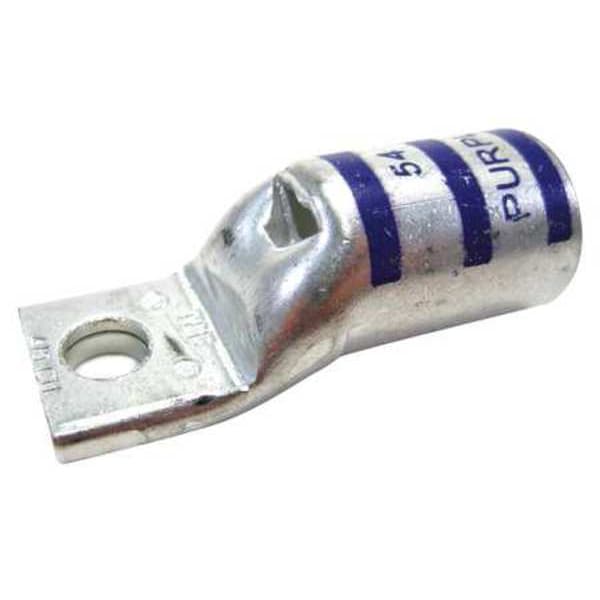

Conector de compresión para terminal de un agujero, calibre 4/0 AWG.
| Cable Size | 4/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.7 in |
| Material | Copper |
| Length | 1.9 in |
| Color Code | Purple |
| Construction | Wrought Copper |
| Plate Material | Electro Tin |
| Standards | CSA Certified, UL E9809 |
| Item | One-Hole Lug Compression Connector |
| Hole Center to End | 0.22 in |
| Barrel Length | Short |
| Stud Size | 1/4 in |
| Peep Hole | Yes |
| Tongue Style | Narrow |
| Die Code | 54 |
| Hole Center to Center | Not Applicable |
| Length (Straight Wireway) | 1/2 in |
| Tongue Angle | Straight |
| Hole Size | 1/4 in |
| Overall Width | 0.7 in |
| For Conductor Material | Copper |
| Maximum Voltage | 35 kV AC |
| Barrel Outside Diameter | 0.7 in |
| Contact Finish | Tin |
| Inspection Hole | Yes |
| Overall Length | 1.9 in |
| For Wire Type | Stranded |
| For Wire Size | 4/0 AWG |
| For Stranded Copper Wire Size - Maximum | 4/0 AWG |
| Tongue Length | 0.65 in |
| Barrel Size | Standard |
| For Stud Size | 1/4 in |
| Tongue Width | 0.7 in |
| Color | Purple |
| Voltage Rating | 35 kV |
| Product Type | Barrel Narrow Tongue |
| Product Name | ELECTRICAL TERMINAL |
| Standard | UL E9809 |
| Insulated | No |
| Number Of Holes | 1 |
| Surface protection | Tinned |
| Connecting angle | 180° |
| Number of mounting holes | 1 |
| Insulation | None |
| Package Quantity | 1 |
