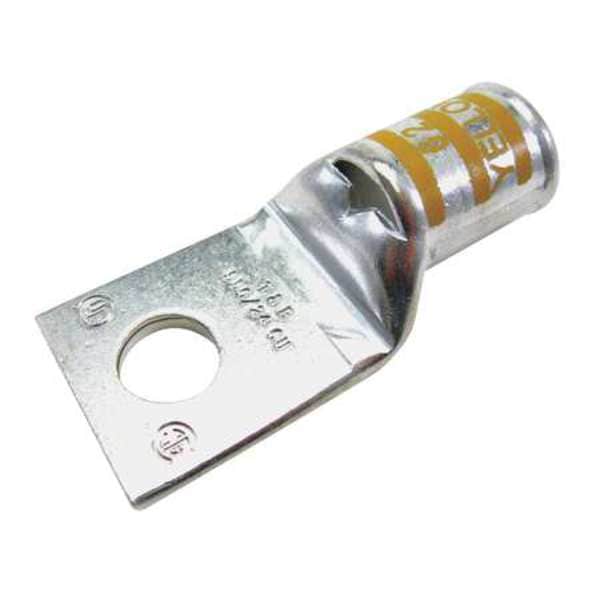

One Hole Lug Compress Connector, 4/0 AWG
| Cable Size | 4/0 Weld |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1-1/4 in |
| Material | Electro-Tin Plated High-Conductivity Wrought Copper |
| Length | 2.76 in |
| Color Code | Yellow |
| Stud Size | 1/2 in |
| Barrel Length | Standard |
| Construction | Wrought Copper |
| Hole Center to End | 1/2 in |
| Die Code | 62 |
| Item | One-Hole Lug Compression Connector |
| Tongue Style | Standard |
| Plate Material | Electro Tin |
| Standards | CSA Certified, UL E9809 |
| Peep Hole | Yes |
| Hole Center to Center | Not Applicable |
| Length (Straight Wireway) | 1.4 in |
| Barrel Outside Diameter | 0.85 in |
| Overall Length | 2.41 in |
| Inspection Hole | Yes |
| Hole Size | 0.53 in |
| Contact Finish | Tin |
| For Conductor Material | Copper |
| Tongue Angle | Straight |
| Tongue Length | 1.6 in |
| Barrel Size | Standard |
| Maximum Voltage | 35 kV AC |
| For Wire Size | 4/0 AWG |
| For Stranded Copper Wire Size - Maximum | 4/0 AWG |
| For Wire Type | Stranded |
| Overall Width | 1-1/4 in |
| For Stud Size | 1/2 in |
| Tongue Width | 0.15 in |
| Number of mounting holes | 1 |
| Voltage Rating | 35 kV |
| Insulation | None |
| Surface protection | Tinned |
| Standard | UL E9809 |
| Number Of Holes | 1 |
| Insulated | No |
| Connecting angle | 180° |
| Package Quantity | 1 |
