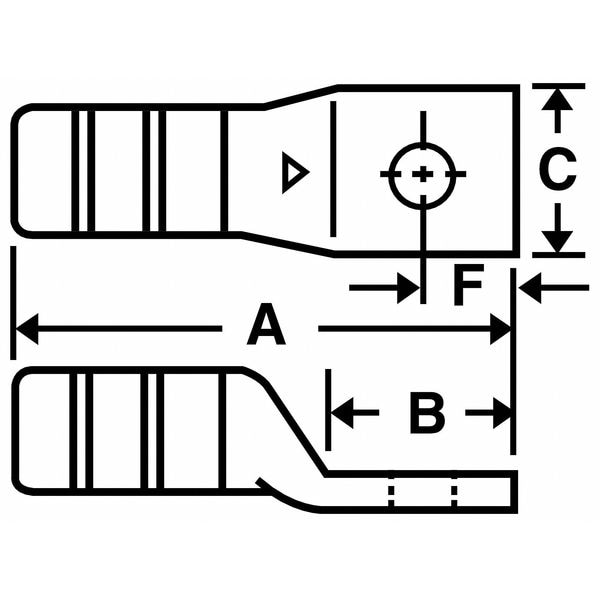

Conector de compresión de ojal de un solo agujero, 4 AWG.
| Cable Size | 4 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.64 in |
| Material | Electro-Tin Plated High-Conductivity Wrought Aluminum |
| Length | 1.81 in |
| Color Code | Green |
| Plate Material | Tin |
| Barrel Length | Long |
| Die Code | 37 |
| Tongue Style | Standard |
| Hole Center to End | 0.34 in |
| Stud Size | 1/4 in |
| Item | One-Hole Lug Compression Connector |
| Peep Hole | No |
| Hole Center to Center | Not Applicable |
| Standards | UL Listed |
| Length (Straight Wireway) | 1.88 in |
| Termination Style | Crimp |
| Contact Finish | Tin |
| For Stranded Copper Wire Size - Maximum | 4 AWG |
| Overall Length | 1.81 in |
| For Conductor Material | Copper |
| Tongue Angle | Straight |
| For Stud Size | 1/4 in |
| Tongue Width | 0.63 in |
| For Wire Type | Stranded, Solid |
| Barrel Size | Long |
| Overall Width | 0.63 in |
| Barrel Outside Diameter | 0.46 in |
| Maximum Voltage | 35 kV AC |
| For Wire Size | 4 AWG |
| Inspection Hole | No |
| For Stranded Aluminum Wire Size - Maximum | 4 AWG |
| Wire Size | #4 AWG |
| Voltage Rating | 600V to 35KV |
| Barrel Shape | Standard |
| Number of Studs | 1 |
| Finish | Tin-Plated |
| Hole Shape | Round |
| Marking | Standard |
| Die Color | Green |
| Surface protection | Tinned |
| Connecting angle | 180° |
| Number of mounting holes | 1 |
| Insulated | No |
| Number Of Holes | 1 |
| Standard | UL E9809 |
| Insulation | None |
| AWG size | 4 |
| Package Quantity | 1 |
