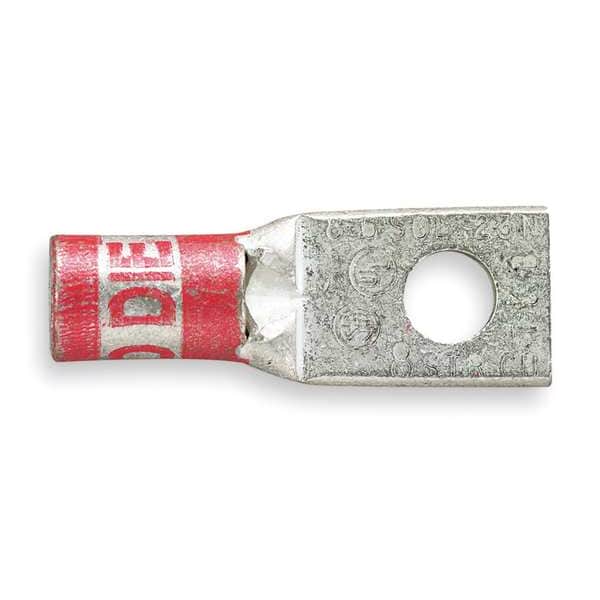

One Hole Lug Connector, 300 kcmil, PK10
| Cable Size | 300 kcmil |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1-1/4 in |
| Material | Electro-Tin Plated High-Conductivity Wrought Copper |
| Length | 2.43 in |
| Color Code | White |
| Stud Size | 3/8 in |
| Tongue Style | Standard |
| Die Code | 66 |
| Plate Material | Tin |
| Barrel Length | Short |
| Peep Hole | Yes |
| Item | One-Hole Lug Compression Connector |
| Standards | CSA Certified, UL Listed |
| Hole Center to End | 3/8 in |
| Hole Center to Center | Not Applicable |
| Length (Straight Wireway) | 2.43 in |
| Contact Finish | Tin |
| Barrel Size | Standard |
| Tongue Thickness | 0.15 in |
| Maximum Voltage | 35 kV AC |
| For Conductor Material | Copper |
| Overall Length | 2.43 in |
| Tongue Length | 0.93 in |
| Barrel Outside Diameter | 0.85 in |
| Overall Width | 1-1/4 in |
| For Stranded Copper Wire Size - Maximum | 300 kcmil |
| For Wire Type | Stranded |
| Tongue Width | 1-1/4 in |
| For Wire Size | 300 kcmil |
| Tongue Angle | Straight |
| Special Features | High-Conductivity Construction |

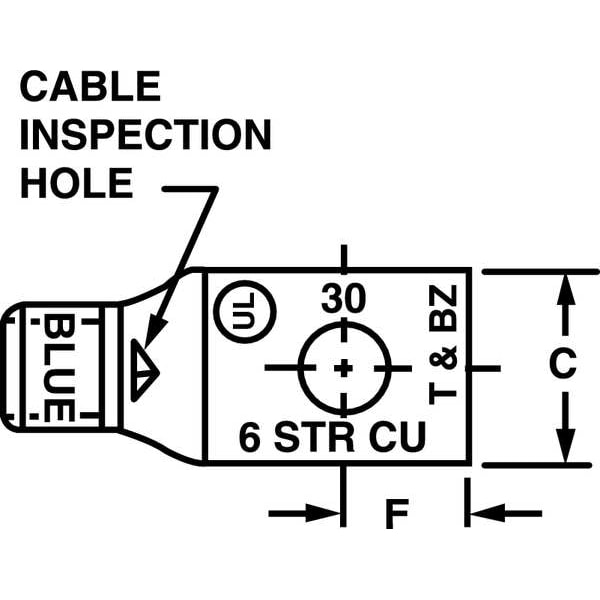

| Inspection Hole | Yes |
| For Stud Size | 3/8 in |
| Number Of Holes | 1 |
| Insulated | No |
| Insulation | None |
| Standard | UL E9809 |
| Number of mounting holes | 1 |
| Voltage Rating | 35 kV |
| Connecting angle | 180° |
| Surface protection | Tinned |
| Package Quantity | 10 |
