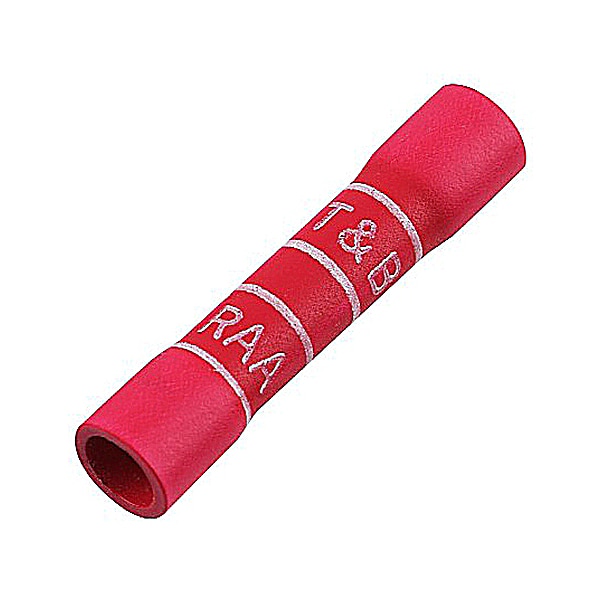

RAA217-170, EXP INS VINYL BUTT SPLICE, 22-18, PK 1000
| Wire Range | 22-18 |
|---|---|
| Insulation Type | Vinyl |
| Material | Copper |
| Temp. Range | 105 C |
| Color | Red |
| Voltage Rating | 600 V |
| Connector Type | Vinyl Insulated Butt Splice |
| Standards | UL E9809 |
| Finish | Tin-Plated |
| Application Tools | WT145C, WT2000, WT112M, ERG4001, ERG4003 |
| Terminal Series | RAA |
| Maximum Insulation (inches) | 0.17 |
| B (inches) | 0.25 |
| Recommended Tool | ERG4001 |
| A (inches) | 1.13 |
| Stock Thickness | 0.03 |
| Flammability Rating | UL 94 V-0 |
| Temperature Rating | 105°C |
| Package Quantity | 1000 |
