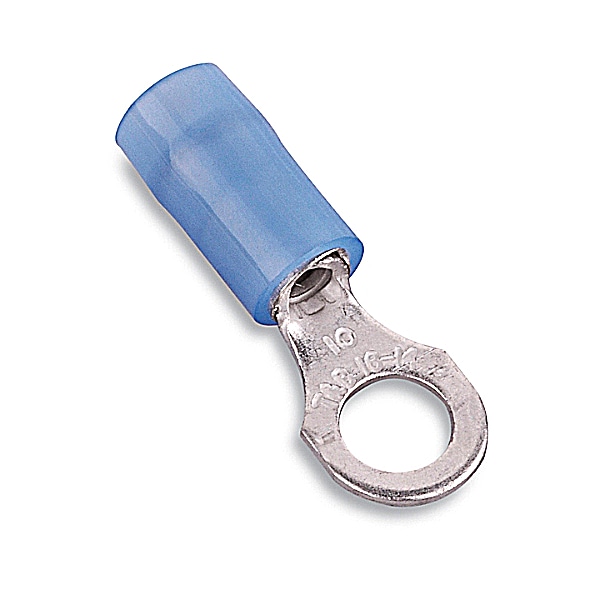

RB14-12, terminal de anillo de nylon INS de 18-14 calibre 1/2 pulgada azul, paquete con 100 unidades.
| Wire Range | 18-14 AWG |
|---|---|
| Insulation Type | Ring Terminal |
| Insulation Color | Blue |
| Seam | Grip Sleeved |
| Standards | UL E9809 |
| Max. Voltage | 600 V |
| Terminal Type | Ring Tongue |
| Connection Material | Copper |
| Item | Solderless Copper Terminals |
| Features | Self-insulated with high dieletric-strength nylon sleeves.; An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.; Application Tools: WT2000, WT112M, WT145C, ERG4001, WT145A; Alternate Package Qty: RB753 |
| Insulation | PA |
| Special Features | Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. |
| Stud size (imperial) | 1/2 inch |
| AWG-range | 18 to 14 |
| Surface protection | Tinned |
| Flange shape | Ring shape |
| Package Quantity | 100 |
