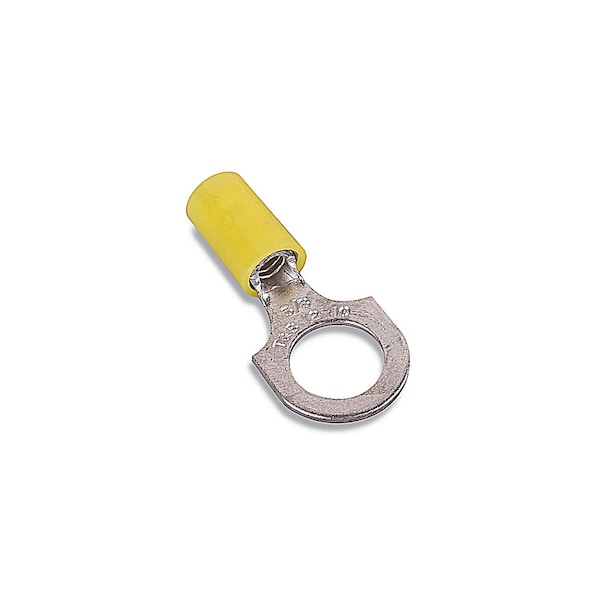

RING TERMINAL, #12-#10 AWG, 1.12"L, 0.53"W, YELLOW, 1/4"
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 1/4 in |
| Insulation Color | Yellow |
| Overall Length | 1.12 in |
| Features | Self-insulated with high dieletric-strength nylon sleeves.; An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.; Application Tools: WT2000, WT112M, WT145C, ERG4001, WT145A; Alternate Package Qty: RC713 |
| Tongue Width - Wire Connector | 0.53 in |
| Connection Material | Copper |
| Max. Temp. | 105 deg C |
| Max. Voltage | 600 V |
| Insulation Dia | 0.21 in |
| Stud size (imperial) | 1/4 inch |
| AWG-range | 12 to 10 |
| Wire Size | 12-10 AWG |
| Insulation | PA |
| Surface protection | Tinned |
| Type | Nylon Insulated Ring Terminal |
| Voltage Rating | 600 V |
| Flange shape | Ring shape |
| Standard | UL E9809 |
| Special Features | Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. |
| Package Quantity | 1 |
