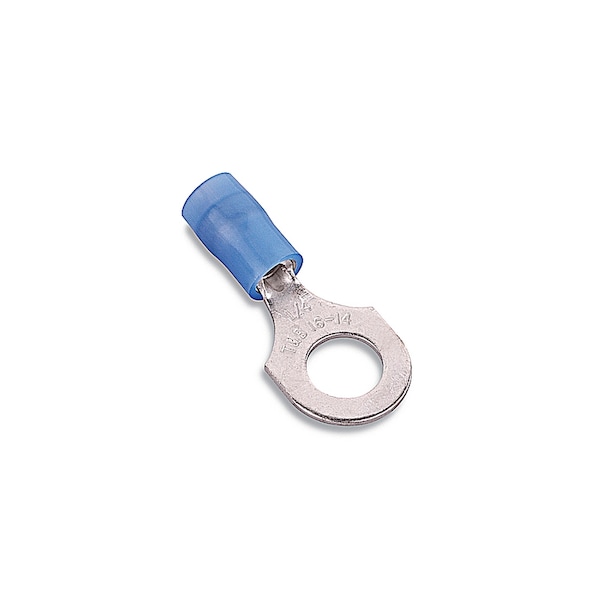

Terminal de anillo, calibre #18-#14, 0.89 pulgadas de largo, 0.31 pulgadas de ancho, azul, perno #10.
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Blue |
| Max. Temp. | 105 deg C |
| Overall Length | 0.89 in |
| Features | Self-insulated with high dieletric-strength nylon sleeves.; An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.; Application Tools: WT2000, WT112M, WT145C, ERG4001, WT145A; Alternate Package Qty: RB873 |
| Tongue Width - Wire Connector | 0.31 in |
| Connection Material | Copper |
| Max. Voltage | 600 V |
| Insulation Dia | 0.162 in |
| Voltage Rating | 600 V |
| Insulation | PA |
| Wire Size | 18-14 AWG |
| AWG-range | 18 to 14 |
| Standard | UL E9809 |
| Type | Nylon Insulated Ring Terminal |
| Special Features | Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. |
| Surface protection | Tinned |
| Flange shape | Ring shape |
| Stud size (imperial) | 10 |
| Package Quantity | 1 |
