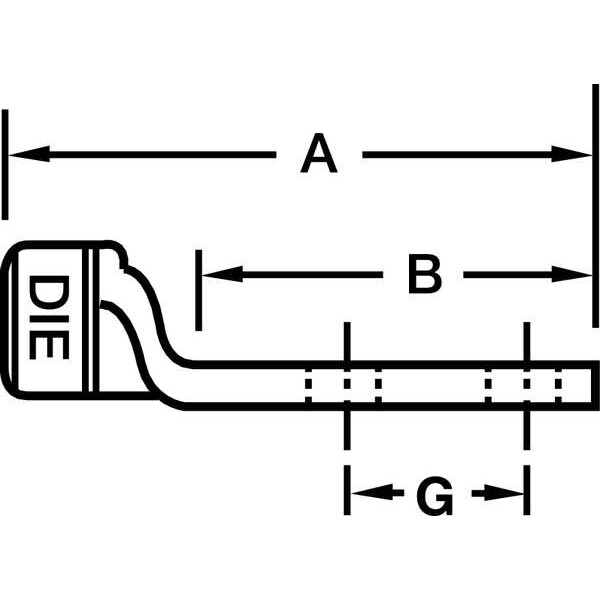

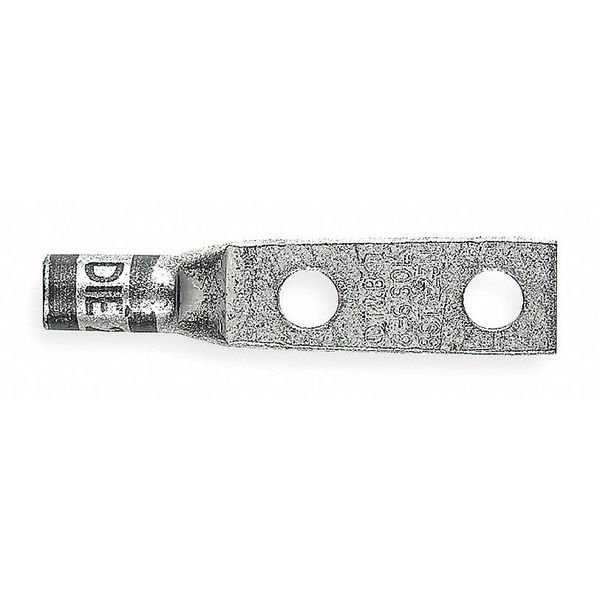

Two Hole Lug Connector, 350 kcmil, PK10
| Cable Size | 350 kcmil |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.36 in |
| Material | Electro-Tin Plated High-Conductivity Wrought Copper |
| Length | 3.51 in |
| Color Code | Red |
| Barrel Length | Short |
| Stud Size | 3/8 in |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Plate Material | Tin |
| Item | Two-Hole Lug Compression Connector |
| Tongue Style | Standard |
| Peep Hole | Yes |
| Die Code | 71 |
| Hole Center to Center | 1 in |
| Standards | UL Listed |
| Hole Center to End | 3/8 in |
| Length (Straight Wireway) | 3.51 in |
| For Stranded Copper Wire Size - Maximum | 350 kcmil |
| Contact Finish | Tin |
| Strip Length | 1-1/8 in |
| Tongue Width | 1.36 in |
| Tongue Angle | Straight |
| For Stud Size | 3/8 in |
| For Conductor Material | Copper |
| Barrel Outside Diameter | 0.93 in |
| For Wire Type | Stranded |
| Barrel Size | Standard |

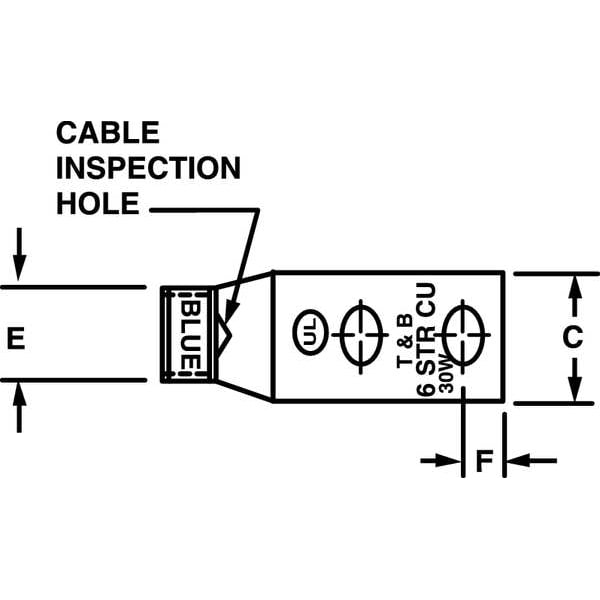

| Inspection Hole | Yes |
| Termination Style | Crimp |
| Maximum Voltage | 35 kV AC |
| Overall Length | 3.51 in |
| Color | Red |
| Product Name | ELECTRICAL TERMINAL |
| Product Type | Barrel |
| Voltage Rating | 35 kV |
| Connecting angle | 180° |
| Number of mounting holes | 2 |
| Standard | UL E9809 |
| Insulation | None |
| Number Of Holes | 2 |
| Surface protection | Tinned |
| Insulated | No |
| Package Quantity | 1 |
