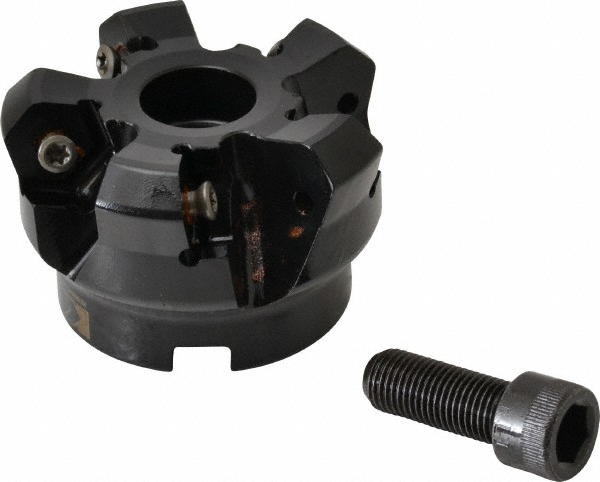

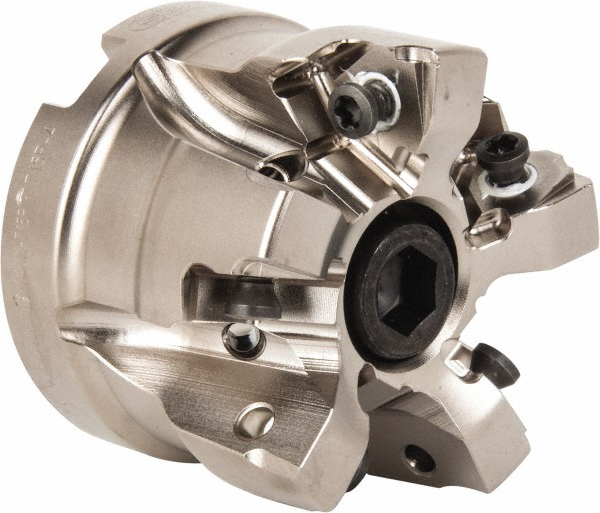

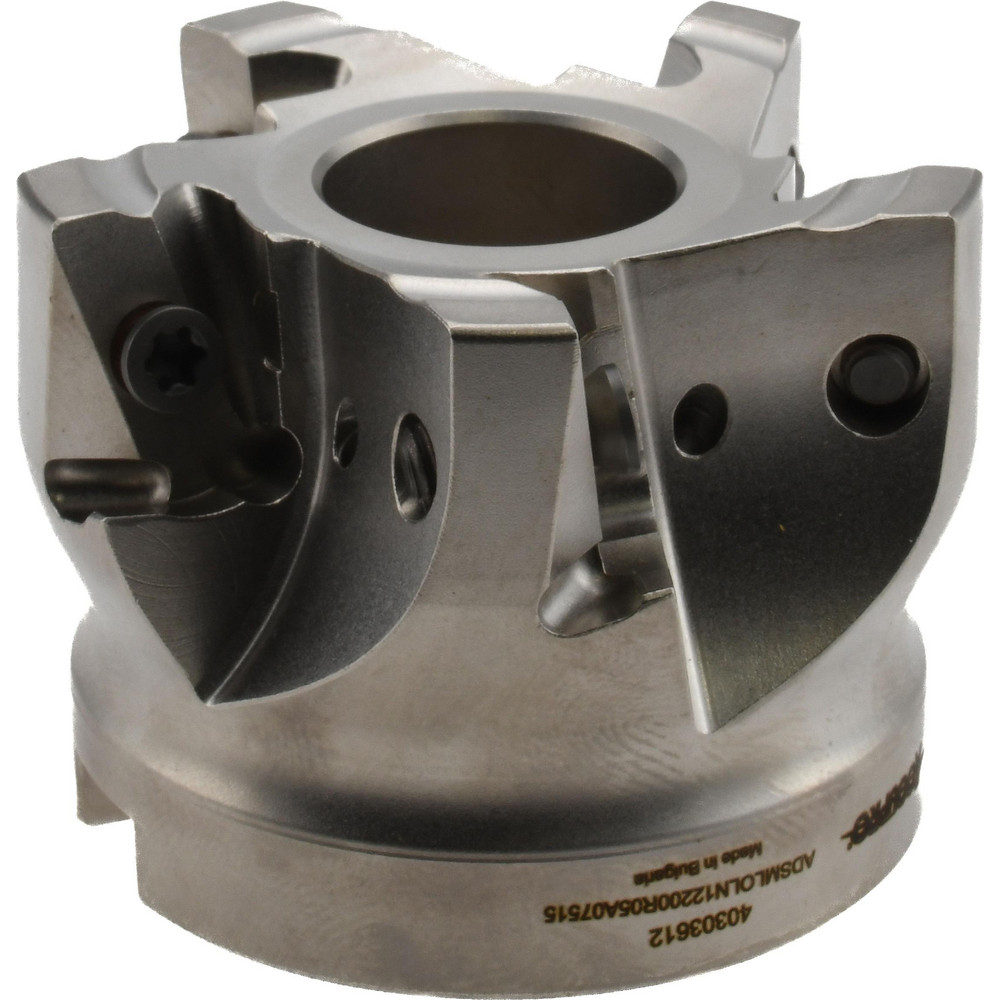

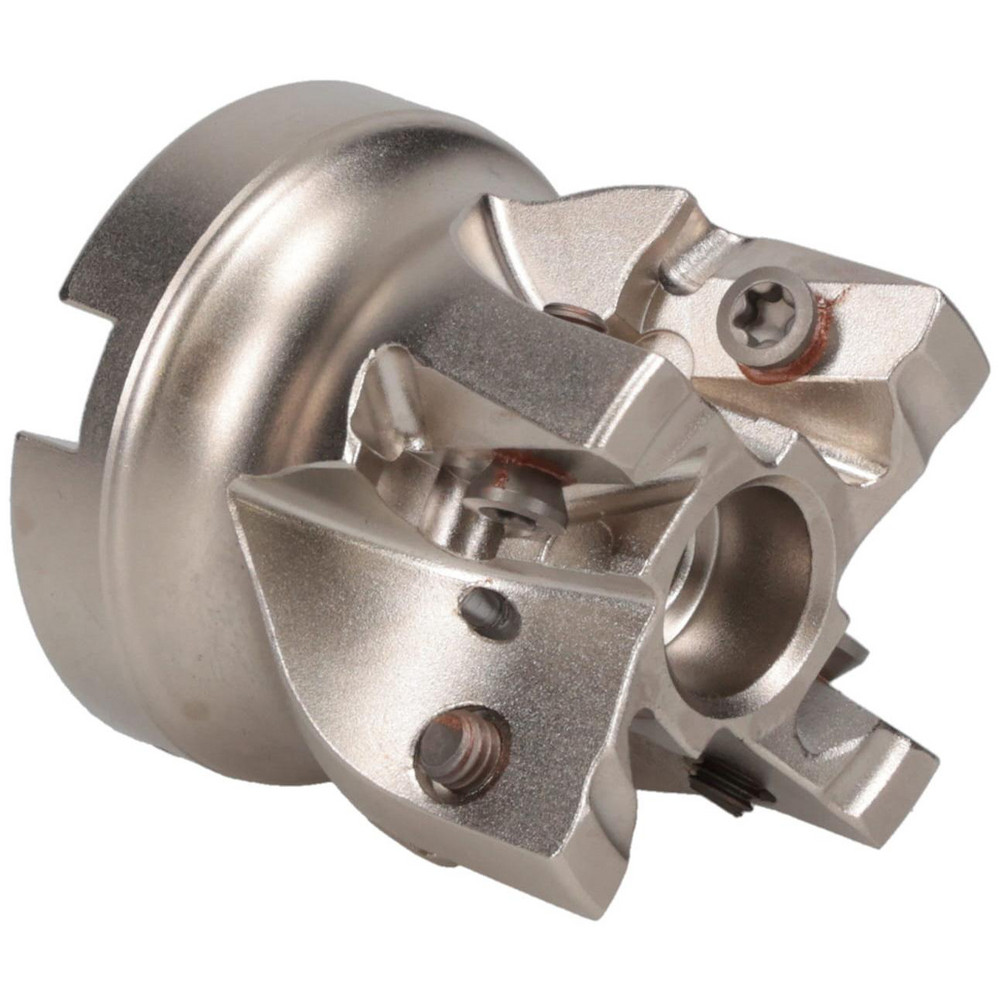

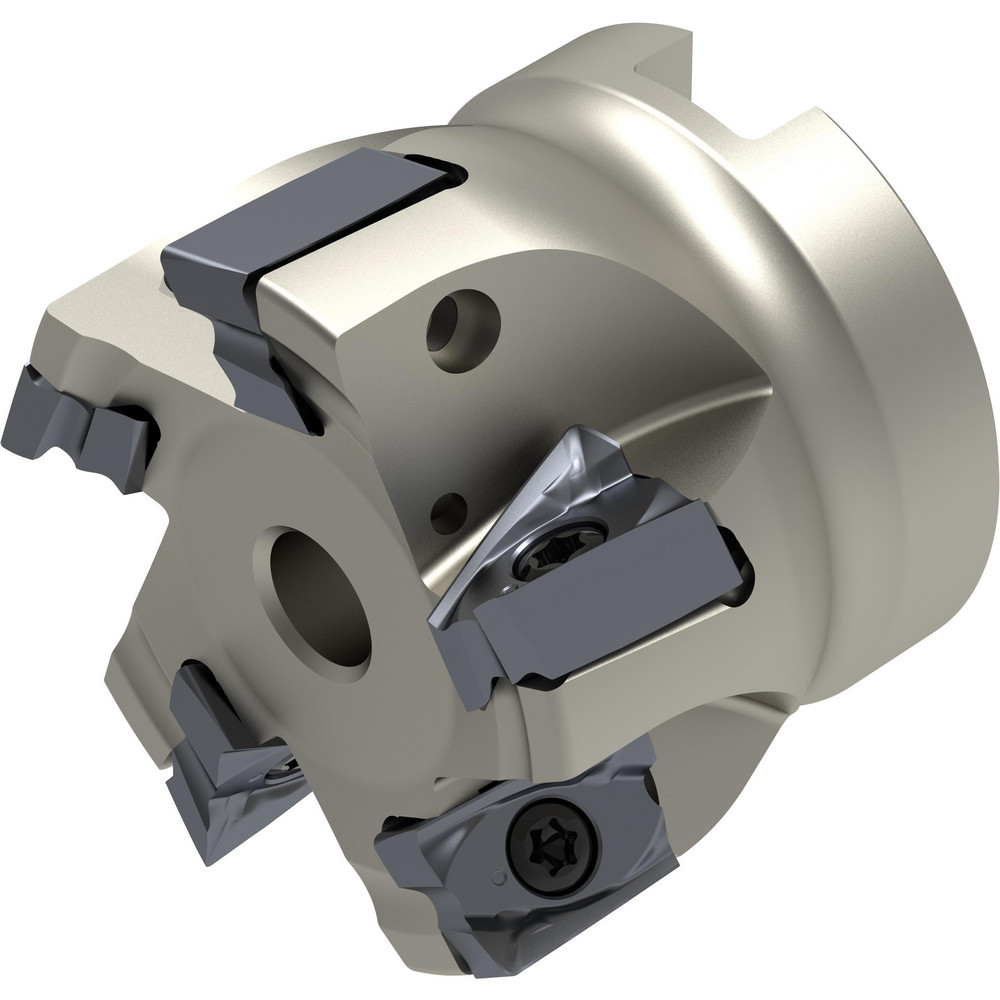

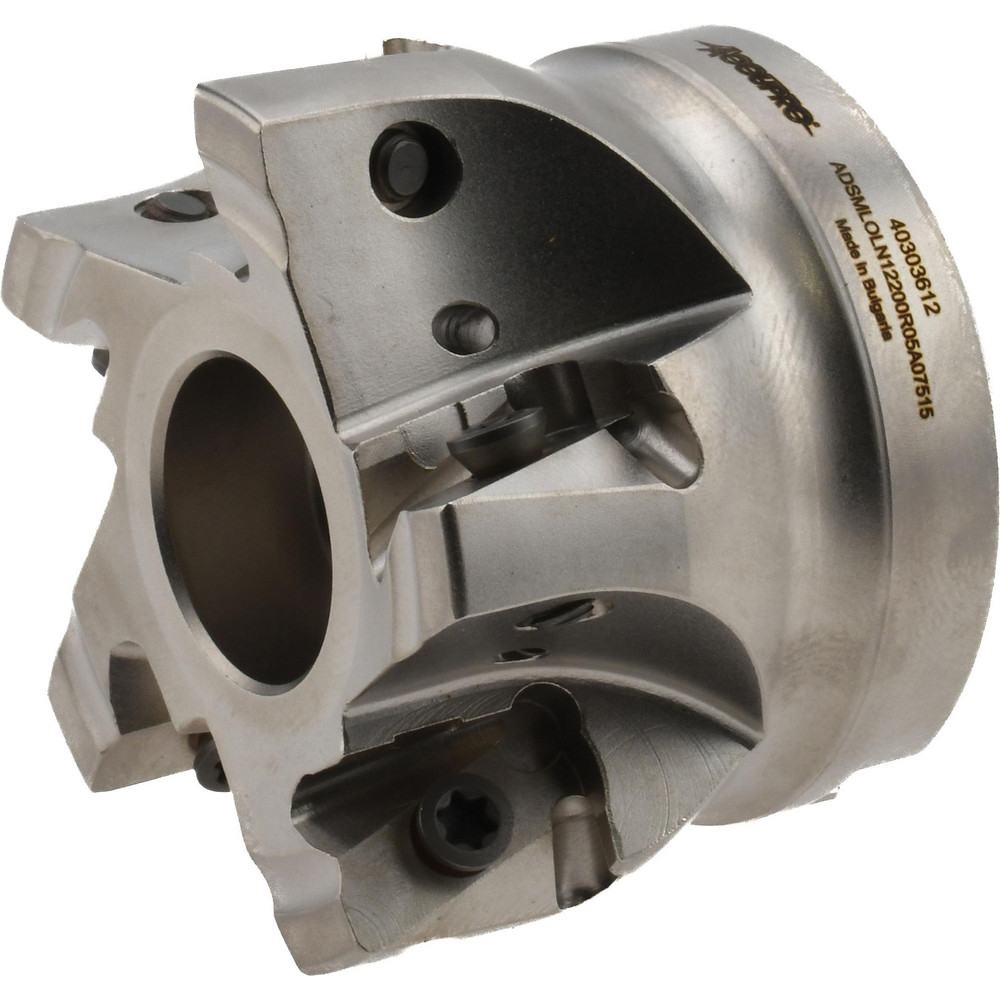

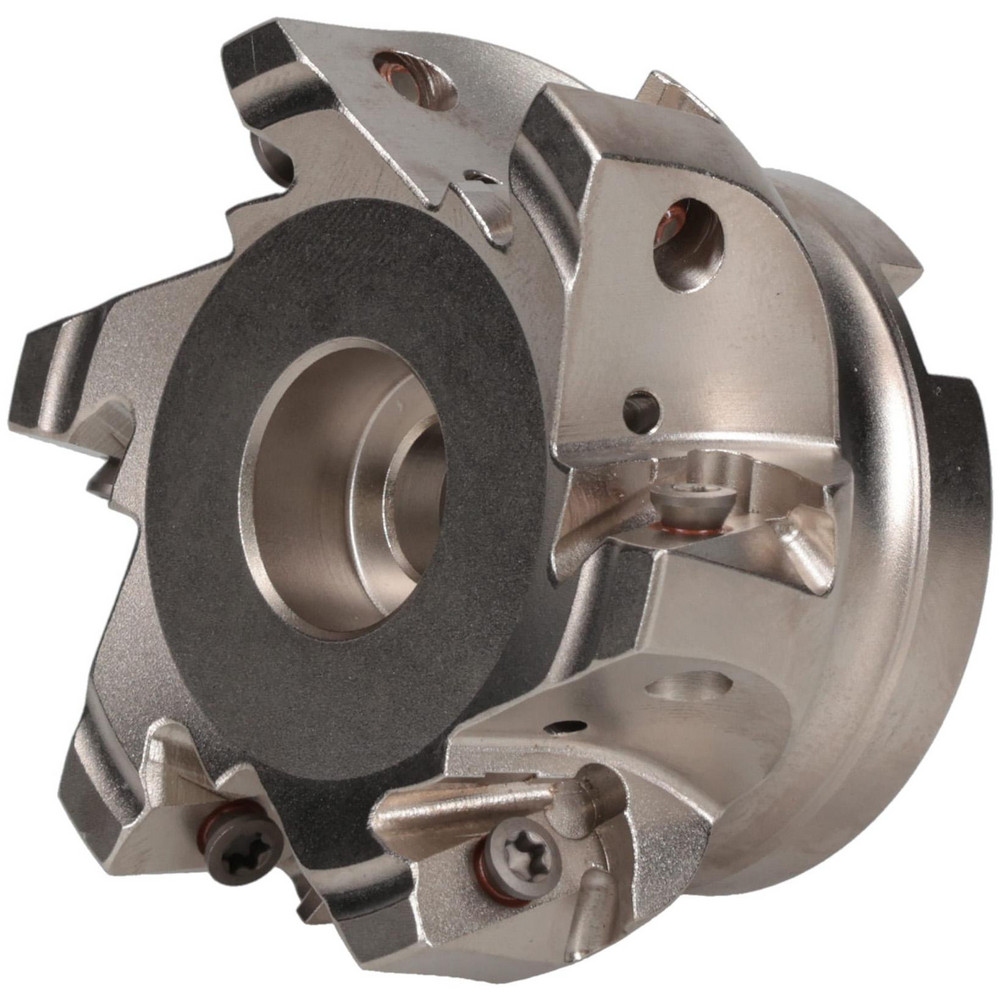

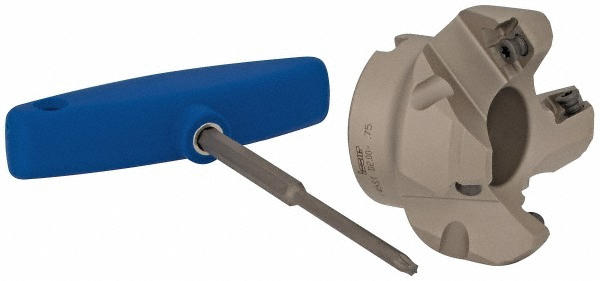

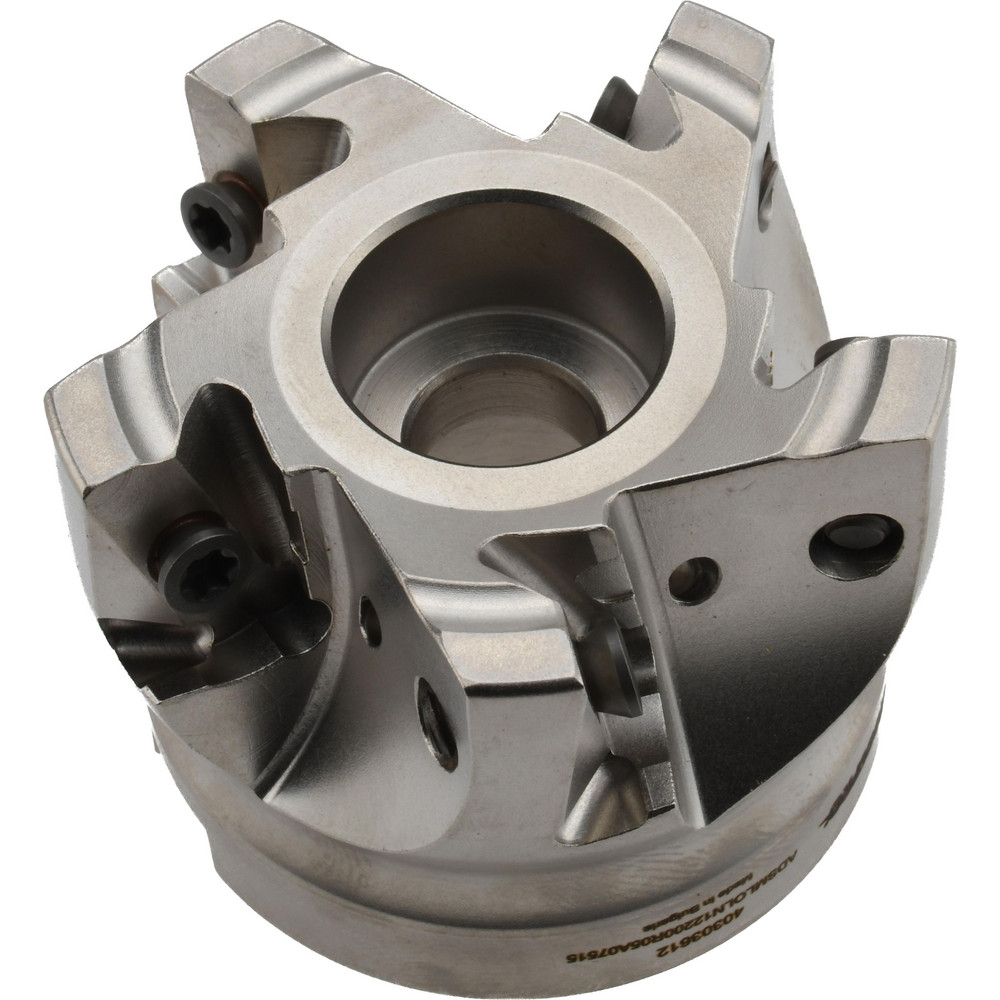

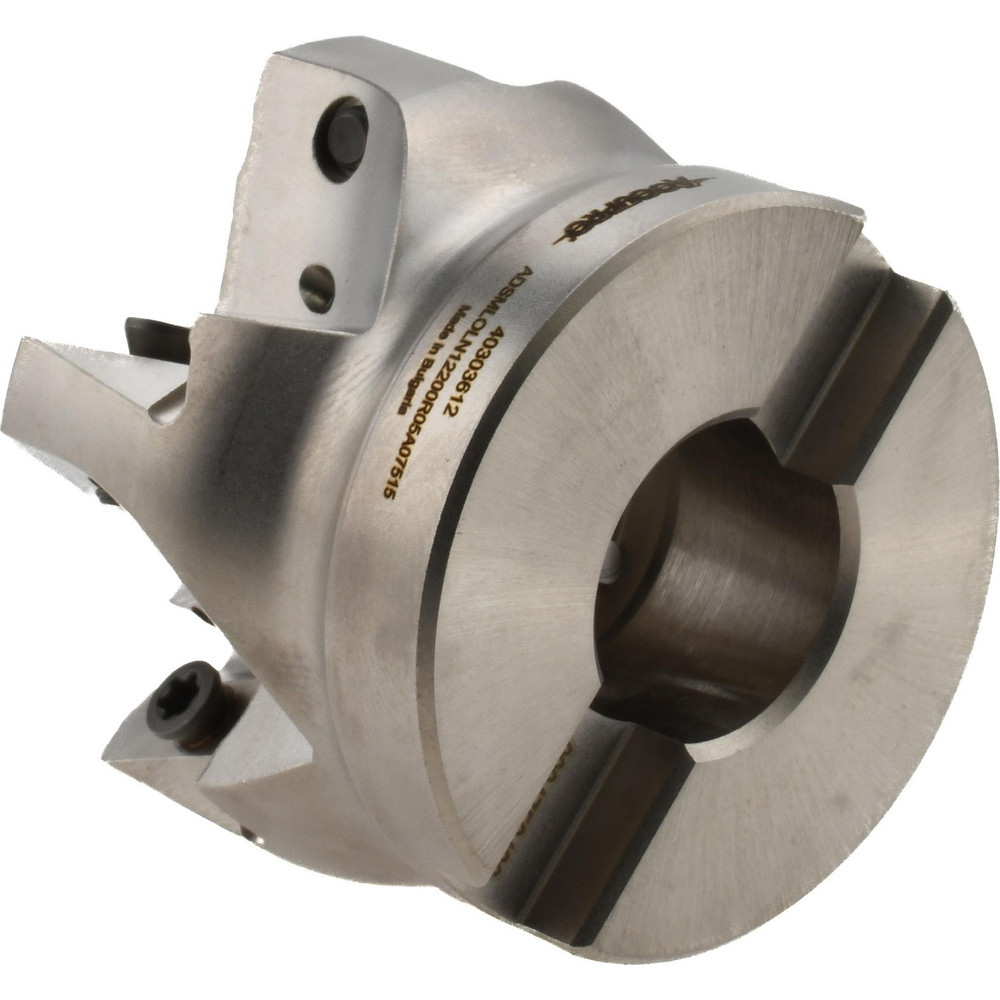

Uses 5 12 Inserts, Through Coolant, Series CI
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | 12 |
| Cutter Style | ADSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0/90 |
| Rake | Positive |
| Series | CI |
| Maximum Body Diameter (Decimal Inch) | 1.7716 |
| Overall Height (Decimal Inch) | 1.5000 |
| Keyway Width (Decimal Inch) | 0.3210 |
| Hub Diameter (Decimal Inch) | 1.7716 |
| Maximum RPM | 16800.000 |
| Tool Application | Facing; Helical Interpolation; Plunging; Shouldering; Slotting; Ramping |
| Counterbore Diameter (Decimal Inch) | 0.7500 |
| Complete Insert Compatibility | LOKU 552; LNKU 555 |
| UNSPSC Code | 31161500 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| MSC Number | MSC# 40303612 |
