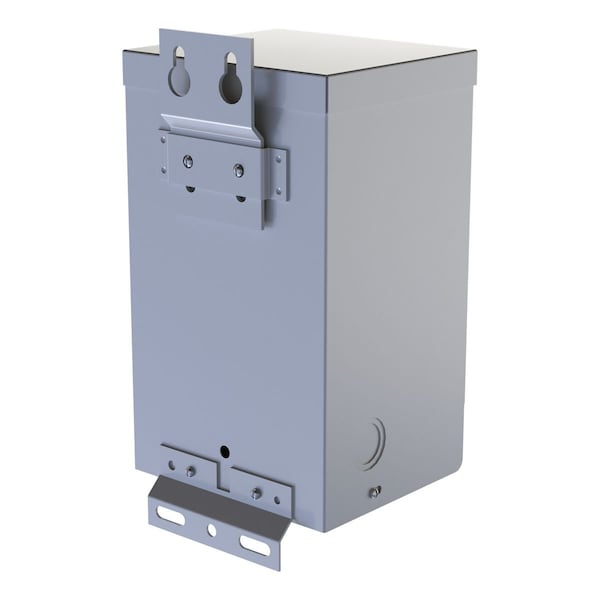

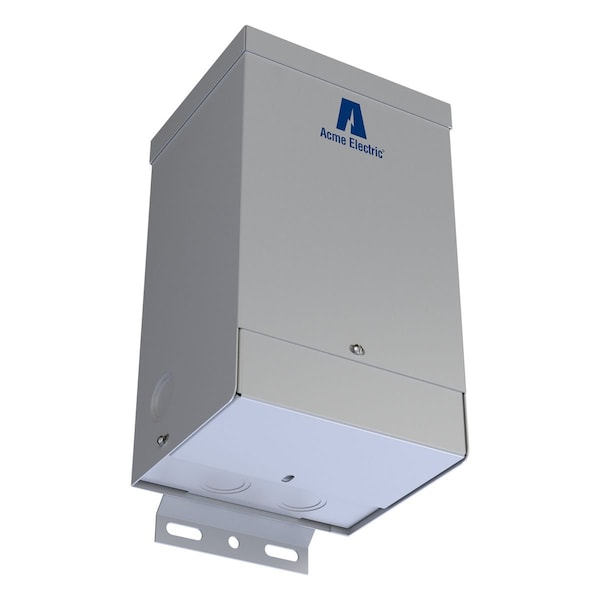

Buck Boost Transformer, 500 VA, NEMA 3R, 115°C, 16/32V AC, 120/240V AC
| CAD Available | Yes |
|---|---|
| Item | Buck Boost Transformer |
| Input Voltage - Transformer | 120/240V AC |
| Mounting - Transformer | Wall |
| Hz - Electrical | 60 |
| IP Rating | IP54 |
| Outdoor Rated - Transformer | Yes |
| Color | Gray |
| Output Voltage - Transformer | 16/32V AC |
| Width | 4.37 in |
| Manufacturers Warranty Length | 10 yr |
| Enclosure Rating | NEMA 3R |
| Standards | CSA Certified C22.2 No. 47, UL 506 |
| Enclosure Type | Encapsulated |
| Phase - Electrical | 1 |
| Temp. Rise | 115 deg C |
| Height | 9.06 in |
| VA Rating - Transformer | 500 VA |
| Knockout Size - Transformer | 1/2 in, 3/4 in |
| Enclosure Finish | Powder Coated |
| Depth | 4.2 in |
| Winding Material - Transformer | Copper |
| Insulation Max. Temp. | 180 °C |
| Weight | 15 lb |
| Features | Easily configured for numerous applications; Lower cost solution; 5-10 times increase in kVA |
| Primary Voltage | 120 X 240 V |
| Max Temperature Rise | 115 Degrees Celsius |
| Construction | Encapsulated |
| UL Standard | UL 506 |
| UL Insulation Class | 180°C |
| CSA Standard | C22.2 No 47 |
| Product Category | Buck-Boost Transformer |
| Carton Quantity | 1 |
| Includes Knockouts | Knockouts Included |
| Insulation Temperature Rating | 356 deg F |
| Package Quantity | 1 |
