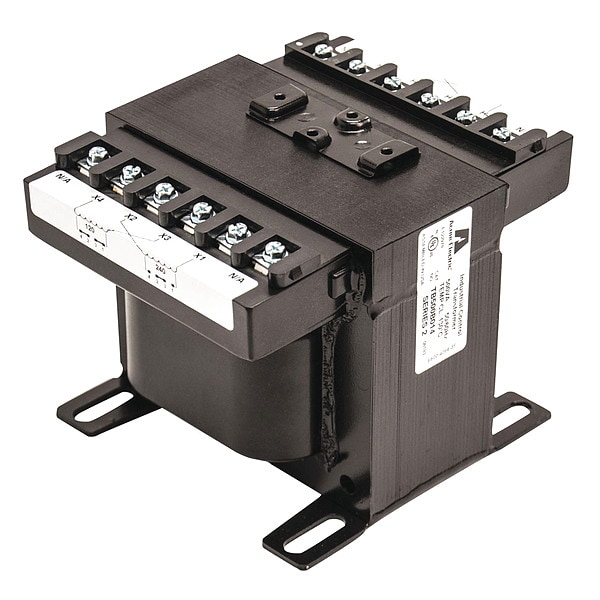

Control Transformer, 1 kVA, Not Rated, 120/240V AC, 240/347/380V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/347/380V AC |
| Mounting - Transformer | Foot, Plate |
| Hz - Electrical | 50/60 Hz |
| Color | Black |
| Height | 6.9 in |
| Temp. Rise | Not Rated |
| VA Rating - Transformer | 1 kVA |
| Depth | 6.21 in |
| Manufacturers Warranty Length | 20 yr |
| Protective Device | Primary and Secondary Fuse |
| Width | 7 in |
| Enclosure Style - Transformer | Open |
| Phase - Electrical | 1 |
| Standards | cUL Listed, UL Listed |
| Enclosure Finish | Epoxy Resin Varnish |
| Output Voltage - Transformer | 120/240V AC |
| Includes | Factory Installed 2 Pole Class CC Primary Fuse Block |
| Weight | 29 lb |
| Application | Acme's TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer's windings and internal terminations are encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme's TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Primary Voltage | 240, 347, 380 V |
| Pallet Quantity | 24 |
| Carton Quantity | 1 |
| Certified Listed | UL ListedcUL Listed |
| Features | Encapsulated design protects core & coil assembly from potentially damaging contaminants; Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency; Integrally molded terminal blocks with isolation barriers to prevent arc over |
| For Fuse Class | CC |
| Package Quantity | 1 |
