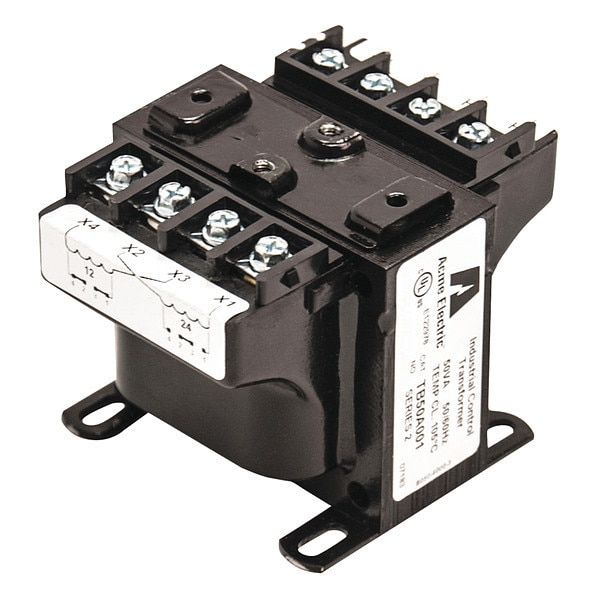

Control Transformer, 150 VA, Not Rated, 23, 24, 25/110,115,120V
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 480V, 200, 208/220, 230, 240/440, 460 |
| Mounting - Transformer | Foot, Plate |
| Hz - Electrical | 50/60 Hz |
| Temp. Rise | Not Rated |
| Depth | 3.78 in |
| Output Voltage - Transformer | 23,24,25/110,115,120V |
| Standards | cUL Listed, UL Listed |
| Width | 3-3/4 in |
| Height | 5.03 in |
| Phase - Electrical | 1 |
| Enclosure Style - Transformer | Open |
| Protective Device | None |
| Enclosure Finish | Epoxy Resin Varnish |
| Manufacturers Warranty Length | 20 yr |
| VA Rating - Transformer | 150 VA |
| Includes | Factory Installed Secondary Fuse Clip |
| Weight | 9.5 lb |
| Certified Listed | UL ListedcUL Listed |
| Pallet Quantity | 120 |
| Primary Voltage | 200, 208/220, 230, 240/440, 460, 480 V |
| Application | Acme's TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer's windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme's TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Construction | Encapsulated |
| Carton Quantity | 1 |
| Package Quantity | 1 |
